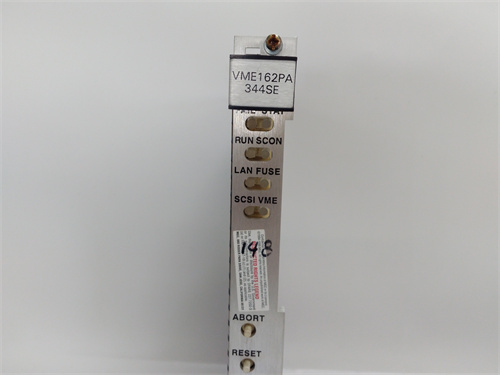

Motorola VME162PA344SE Product Overview

The VME162PA344SE module is produced by Motorola.It is based on a high-performance processor design,provides powerful computing power,and supports a variety of communication protocols and interfaces,suitable for complex data processing and control needs.This product is widely used in industrial automation,embedded systems and real-time control systems,providing reliable control and data processing solutions for various industrial applications.

Main Features

High-performance processor:VME162PA344SE uses Motorola MC68040 32-bit processor with a clock frequency of 25MHz(some say 32MHz),which can handle complex computing and control tasks,ensuring efficient data processing and system response.

Large-capacity memory:The module is equipped with 16MB of RAM for storing program code and running data to ensure stable operation of the system.

Multiple I/O interfaces:Supports multiple types of input and output interfaces,including serial port,parallel port,interrupt,DMA,4 IP channels,2 serial I/O ports,Ethernet,SCSI,etc.,to meet different types of signal and device connection requirements.

VMEbus bus interface:Compatible with VME(Versa Module Eurocard)bus standard,can be seamlessly integrated with other VME bus modules and systems,and realize modular expansion and flexible configuration.

High reliability and stability:Adopt high-quality components and rugged design to withstand harsh industrial environments and ensure long-term stable operation.

Easy to use:Provide easy-to-use software development tools and drivers to simplify developers’tasks and shorten the development cycle.

Application fields

The VME162PA344SE module can be widely used in various fields,including but not limited to

Industrial automation:used to control robots,PLCs and other equipment on the production line to realize automated production.At the same time,it can also be used for data acquisition,such as collecting temperature,pressure,flow and other data in the production process for real-time monitoring and analysis.

Test and measurement:used to test and calibrate electronic equipment to ensure the accuracy and reliability of the equipment.

Medical equipment:used to control the operation of medical instruments,such as CT machines,MRIs,etc.,to improve the performance and safety of medical equipment.

Transportation:used to connect traffic signal systems,monitoring systems,and communication equipment in transportation fields such as railways,highways,and aviation,to improve the safety and efficiency of transportation.

Aerospace and defense:used for avionics equipment and military information systems,providing reliable control and data processing solutions for the aerospace and defense fields.

Technical Specifications

Here are some key technical specifications of the VME162PA344SE module

Processor:Motorola MC68040 32-bit

Clock frequency:25MHz(or 32MHz)

Memory:16MB RAM

I/O interface:serial port,parallel port,interrupt,DMA,4 IP channels,2 serial I/O ports,Ethernet,SCSI,etc.

Bus interface:VMEbus

Dimensions:6U VMEbus card

Power consumption:15W(or 25W,depending on different materials)

Operating temperature:0°C to 55°C

Storage temperature:-40°C to+85°C(or-40°C to 70°C,depending on different materials)
