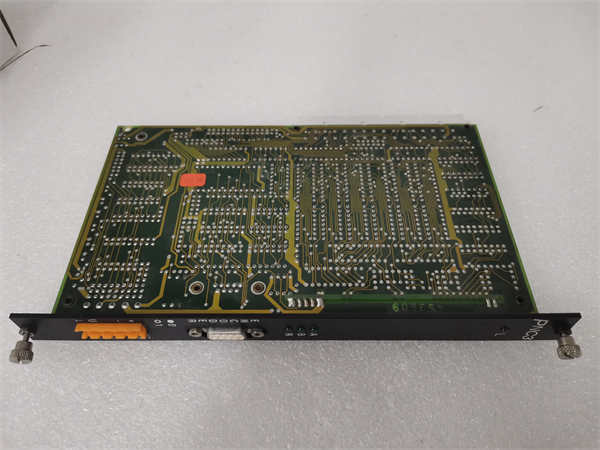

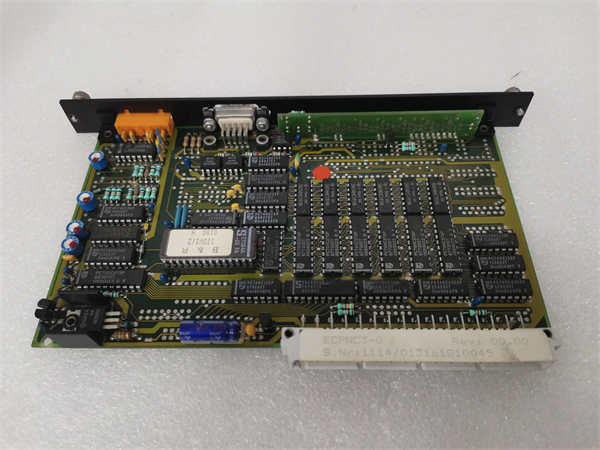

B&R ECPNC3-0 PNC3 Product Introduction

ECPNC3-0 PNC3 is a PLC programmable control system that supports PROFIBUS DP bus. The product provides redundant dual-bus structure and optical fiber redundant ring network function, and provides optical fiber redundant long-distance transmission and relay function for redundant dual-network system.

series

ECPNC3-0 The PNC3 is a product under the B&R brand.

Electrical signal and optical fiber signal conversion: ECPNC3-0 PNC3 realizes the conversion of electrical signal and optical fiber signal of PROFIBUS DP bus.

Dual network redundancy

The device has two groups of optical fiber interfaces to form an optical fiber self-healing ring network, and two groups of DP bus interfaces to support dual network redundancy and optical fiber ring network.

Flexible configuration: One or two optical and electrical interfaces can be flexibly configured according to the actual requirements of the project.

High-speed communication: Based on the standard PROFIBUS DP, the rate can be set by the dip switch or select the rate adaptive setting, supporting 10 common rates of the PROFIBUS DP bus.

Installation Method: The MANB&W 31711974-4 compact PLC can be mounted horizontally or vertically, and when installed vertically, ensure that the digital input/output group faces upward.

effect

ECPNC3-0 PNC3 is mainly used in industrial automation systems to provide stable and high-speed data transmission and communication functions for industrial automation systems by realizing the conversion of electrical signals and optical fiber signals of PROFIBUS DP bus. At the same time, its dual network redundancy and optical fiber ring network function enhance the reliability and stability of the system, making the industrial automation system more robust and efficient.
