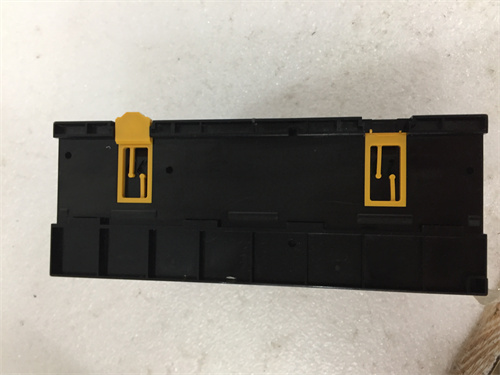

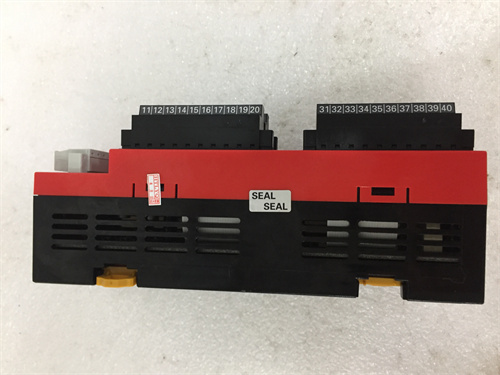

Allen-Bradley 1791DS-IB12 Product Introduction

Allen-Bradley 1791DS-IB12 is an output module produced by Allen-Bradley(Rockwell Automation).The following is a detailed introduction to it.

Basic information

Brand:Allen-Bradley(Rockwell Automation)

Model:1791DS-IB12

Product series:CompactBlock Guard I/O

Technical specifications

Operating voltage:usually 24VDC

Output frequency:up to 50kHz

Communication protocol:supports industrial network protocols such as DeviceNet and EtherNet/IP

Safety certification:may be certified by safety certification agencies such as TÜV,suitable for safety applications that meet EN954 Category 4 and SIL3

Product features

Distributed I/O design:1791DS-IB12 adopts distributed I/O design,which can be flexibly distributed on the periphery of the application project or installed on the machine,which is easy to install and maintain.

Modular design:The module adopts modular design and can be easily integrated with other Allen-Bradley controllers to achieve system expansion and upgrade.

Safety performance:As part of the Guard I/O series,the 1791DS-IB12 has excellent safety performance and can be used in applications that require high safety.

Point-level diagnostics:Point-level diagnostics can be implemented to facilitate troubleshooting of all input and output circuits,improving system reliability and stability.

Hot plugging and unplugging:Hot plugging and unplugging(RIUP)is supported,but must be performed under appropriate safety measures.

Application areas

The 1791DS-IB12 output module is widely used in industrial automation fields such as petroleum,electronics,transportation,printing and packaging,textiles and leather.It can be used to monitor,operate and control automation systems to improve production efficiency and quality.
