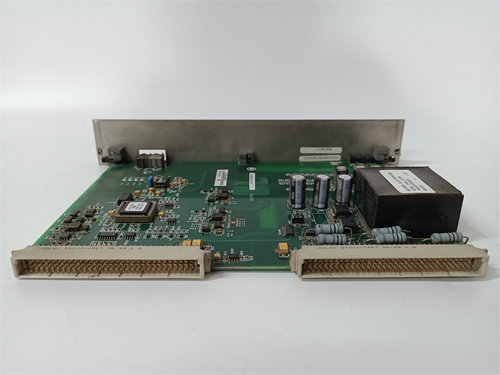

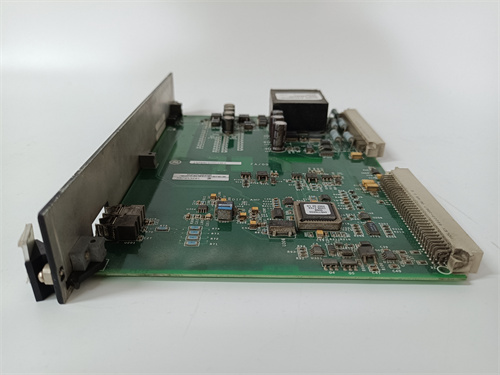

GE IS200EGDMH1A Detailed Information

The IS200EGDMH1A module is designed for industrial automation systems and can provide reliable control functions in complex environments.It integrates multiple input/output functions,reduces the number of system components,reduces costs,and is widely used in power,electronics,automation,as well as petroleum,chemical,metallurgy and other industries.

Main Features

High integration

The module integrates multiple functions such as digital input,digital output,analog input and analog output,reducing the number of components required for the system,thereby reducing the overall cost.

Flexible configuration

IS200EGDMH1A supports multiple communication protocols,such as ProfiNet,EtherCAT,DeviceNet,etc.,which is convenient for integration with other systems.At the same time,its input/output configuration can also be flexibly expanded according to actual needs.

Wide temperature operating range

The module can operate stably in the operating temperature range of-20℃to 60℃,and is suitable for a variety of industrial scenarios.

Easy to maintain

The modular design is adopted for easy installation and maintenance.At the same time,it provides rich diagnostic functions to simplify maintenance work.

High performance

It has high-speed processing capabilities and is suitable for real-time control.At the same time,it adopts advanced manufacturing processes and high-quality components to ensure stable operation in harsh industrial environments.

Technical parameters

Basic parameters

Model:IS200EGDMH1A

Manufacturer:General Electric(GE)

Product series:IS200 series

Electrical parameters

Rated voltage:24V DC

Rated current:2A(another statement is the maximum current consumption of 1A)

Power consumption:maximum 48W

Input/output parameters

Digital input:16 channels(another statement is 8 channels,24V DC)

Digital output:16 channels(another statement is 4 channels,24V DC,maximum 2A)

Analog input:8 channels

Analog output:4 channels

Communication parameters

Supports multiple protocols such as ProfiNet,EtherCAT,DeviceNet,etc.(others say it also supports EtherNet/IP and other protocols)

Environmental parameters

Working temperature:-20℃to 60℃

Storage temperature:-40℃to 85℃

Relative humidity:5%to 95%(no condensation)

Mechanical parameters

Dimensions:length×width×height=200mm×150mm×50mm(others say 160mm×80mm×45mm or similar dimensions)

Weight:about 1.5kg(other modules of different sizes may have different weights)

Other parameters

Protection level:IP20

Installation method:DIN rail installation

Application scenarios

IS200EGDMH1A module is widely used in the following fields

Energy management:used for power monitoring,renewable energy systems,etc.

Transportation:rail transit signal control,vehicle automation,etc.

Manufacturing:production line control,automation equipment,etc.

Building automation:intelligent building management system,etc.

Petrochemical:various equipment and process parameters in the production process of refineries and chemical plants.

Metallurgical industry:automatic control system of steel production line.
