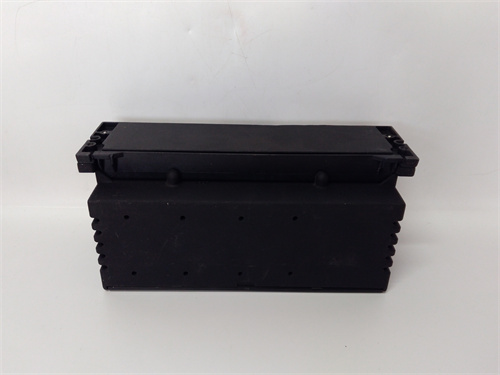

GE IC660BBA100 Product Introduction

The GE IC660BBA100 module is designed for industrial automation applications and supports a variety of analog signal ranges,including voltage and current signals.It has high resolution and fast update capabilities,and can provide accurate analog monitoring and control functions.

Main Features

Input/output function

The module has 4 independent input circuits and 2 independent output circuits.

Each input circuit can accept signals in one of five analog ranges,including 0-10 V DC,±10 V DC,±5 V DC,0-5 V DC and 4-20 mA.

The output circuit can provide corresponding analog signal output.

High resolution and fast update

The module has a resolution of 12 bits and can accurately process analog signals.

The update time is 4 milliseconds to ensure fast response.

Multiple signal range support

Adapt to different analog signal requirements,including voltage and current signals.

The optional input filter time is up to 1024 milliseconds,which helps reduce noise interference.

Communication interruption protection

When communication is interrupted,each output can maintain the last state or default value to ensure system stability.

Compatibility

The module is backward compatible with earlier versions and compatible with other PLC modules in the GE series.

It can be used with various PLC controllers to monitor and control industrial production processes.

Other features

The rated voltage is 115 volts AC.

The heat dissipation power is 7 watts.

The weight is 4 pounds.

The internal power supply can drive each current mode output load up to 300 ohms,and an external 24 or 48V DC power supply can be used for loads up to 2K ohms.

Each input and output can be scaled independently,and the function of reporting faults to the host can be enabled or disabled.

Application field

The GE IC660BBA100 module is widely used in industrial automation,including production line control,process monitoring,robot control,etc.It can be used with PLC controllers to achieve accurate acquisition,processing and output of analog signals,thereby improving production efficiency,reducing energy consumption and improving product quality.
