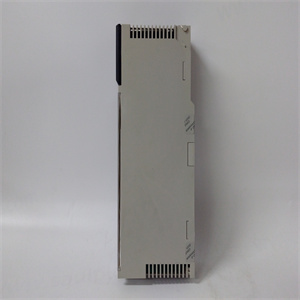

SCHNEIDER 140CPS11100 Product Overview

SCHNEIDER 140CPS11100 is a high-performance power module produced by Schneider Electric.The following is a detailed introduction to it.

Basic information

Brand:SCHNEIDER

Model:140CPS11100

Purpose:Designed to meet the power needs of various industrial automation and control systems

Technical specifications

Input voltage/power type

120~230VAC,100~276V,47~63Hz(independent)

A variety of other voltage and frequency combinations are available,such as 230V AC 170276V,115VAC 93132V,etc.

Output current

400mA 115V

200mA 230V

Instantaneous peak current

20A 115V

10A 230V

Rated power:50VA

Related fuse rating:1.5A slow-blow type

Harmonic distortion:≤10%basic effective value

Power supply output current:3A(independent)

Power consumption:2+(3 x output current),where the output current unit is A

Functional features

Multi-channel power output:The 140CPS11100 has a multi-channel power output function,which can provide power with different voltage and current levels to meet the needs of various devices and systems.

Stability:The power module has excellent stability,ensuring that the connected devices can continue to operate reliably,which is particularly important for environments with extremely high stability requirements such as industrial control systems and data centers.

Protection mechanism:Integrated overload and short-circuit protection functions effectively prevent equipment damage caused by power problems.This feature not only improves the safety of the system,but also reduces maintenance costs and downtime.

Hot-swap function:Some models support hot-swap function,allowing the power module to be replaced without shutting down the system,further improving the system’s availability and maintenance convenience.

Communication function:Equipped with a communication interface,it supports data interaction with other control devices to achieve remote monitoring and management.Users can obtain the working status and performance data of the power module in real time,and perform fault diagnosis and preventive maintenance in a timely manner.

Application fields

140CPS11100 is widely used in many fields,including industrial control systems,PLC(programmable logic controller),HMI(human-machine interface),power distribution systems,and automation equipment.
