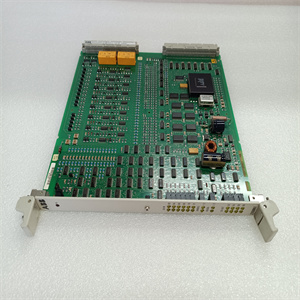

ABB 216DB61 Product Introduction

ABB 216DB61 is a versatile digital output module used in industrial automation and control systems for monitoring and controlling digital signals. It is ideal for a wide range of industrial applications, including controlling motors, valves, and other devices in automation processes.

Product Parameters and Specifications

• Model Number: ABB 216DB61
• Brand: ABB
• Type: High-Performance Digital Output Module
• Input Voltage: 24V DC (working voltage range: 20.4V to 28.8V DC)
• Output Voltage Range: 0-24V DC
• Output Current per Channel: 0.5A
• Maximum Output Current per Module: 8A
• Switching Frequency: 1kHz
• Operating Temperature Range: -40°C to +70°C

Dimensions and Weight

• Size: 90mm x 12mm x 64mm (Height x Width x Depth)
• Weight: 50 grams

Features

• High-Density Configuration: Designed with 16 digital outputs, allowing for simultaneous control of multiple devices
• Compact and Robust Design: Easily integrates into any control system due to its compact size and robust construction
• Wide Voltage Range: Operates with a wide range of input voltages (20.4V to 28.8V DC)
• High-Speed Switching: Supports high-speed digital switching for monitoring and controlling rapidly changing signals
• Built-in Diagnostic Functions: Equipped with diagnostic functions to help detect and isolate faults in the system
• Programmable: Configurable using CoDeSys software, enabling users to develop, test, and validate automation programs efficiently
• Communication Interfaces: Supports various communication interfaces such as Modbus, Profibus, and Ethernet for integration with other control systems
• LED Indicators: Each channel has an LED indicator for monitoring the status
• Protection Functions: Includes short-circuit protection and overvoltage protection
