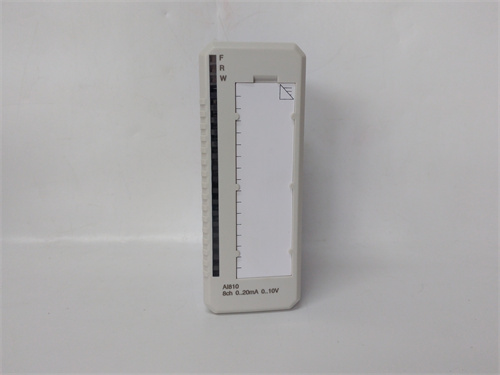

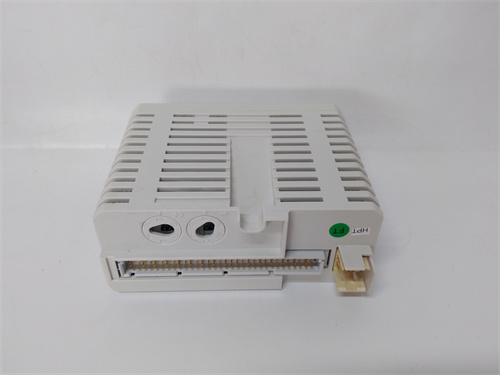

ABB AI810 3BSE008516R1 Product Overview

The AI810 3BSE008516R1 module is commonly used in industrial automation systems to process the input of analog signals.It has the characteristics of high precision,multi-channel,electrical isolation and programmability,and can meet the needs of various industrial automation applications.

Main Features

Multi-channel input:The AI810 module has 8 analog input channels,each of which can be voltage or current input,supporting signal types such as 0…20mA,4…20mA,0…10V or 2…10V DC.

High-precision measurement:The module provides high-precision analog signal measurement to ensure accurate data acquisition,and is suitable for application scenarios with high measurement accuracy requirements.

Electrical isolation:It has electrical isolation function to prevent interference and fault propagation,and improve the stability and safety of the system.

Current limitation and protection:The current input can handle a transmitter power supply short circuit of at least 30V DC without damage,and uses a PTC resistor for current limitation to protect the module from damage.

Programmability:The module has a certain degree of programmability,and users can configure and set it according to application requirements.

Fieldbus support:Supports industrial fieldbus communication protocols such as FOUNDATION Fieldbus or Profibus to achieve integration and data exchange with other automation equipment.

Technical specifications

Input type:voltage or current input.

Input range:0…20mA,4…20mA,0…10V or 2…10V DC.

Input resistance:The input resistance of current input is 250 ohms(including PTC),and the input resistance of voltage input is 290k ohms.

Number of channels:8.

Resolution:12 bits.

Dimensions:12.7cm long,5.1cm wide,11.4cm high(approximately).

Weight:about 0.3kg(approximately).

Application Fields

The AI810 3BSE008516R1 module is widely used in CNC machinery,metallurgy,oil and gas,petrochemicals,chemicals,papermaking and printing,textile printing and dyeing,machinery,electronic manufacturing,tobacco,plastic machinery,electricity,water conservancy,water treatment/environmental protection,municipal engineering,boiler heating,energy,power transmission and distribution,etc.In these fields,the module is used as part of the control system to monitor and control analog signals in industrial processes to achieve automatic control and optimization.
