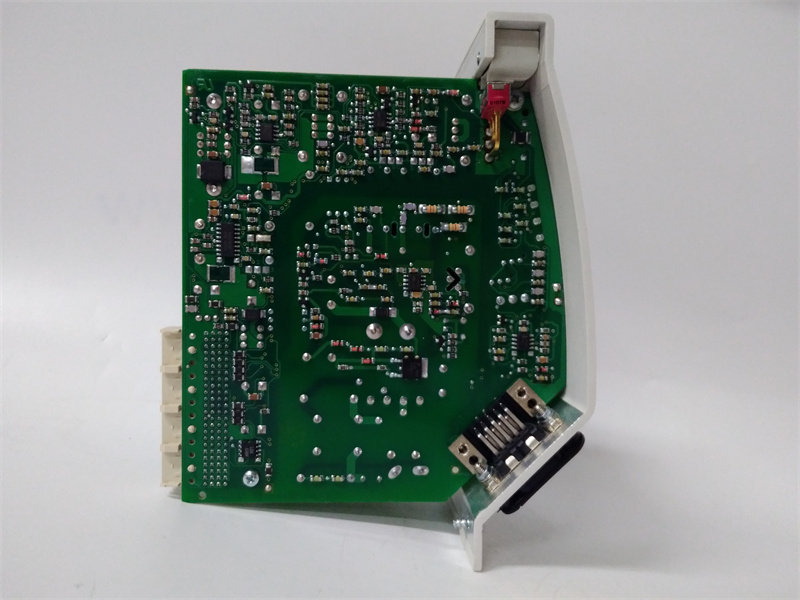

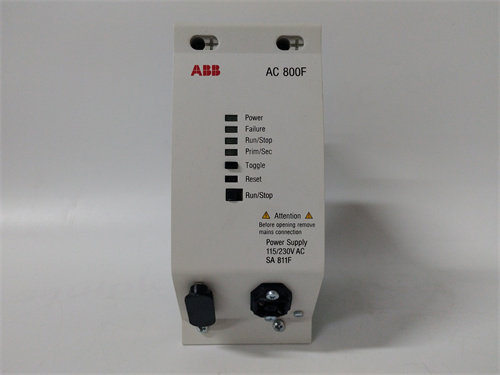

ABB SA811F Product Introduction

The ABB SA811F module is manufactured by ABB and is a high-performance digital expansion module or control system component that can be used in industrial automation and control systems to enhance the functionality and flexibility of the system.

Product Features

Good EMI design:It has excellent electromagnetic compatibility and can operate stably in complex electromagnetic environments.

High-strength all-steel structure:It adopts a high-strength all-steel structure design with high impact and seismic resistance,suitable for various harsh industrial environments.

Standard 19-inch rack-mounted industrial computer:It meets the size requirements of the standard 19-inch rack-mounted industrial computer,which is convenient for installation and integration into various industrial automation systems.

Configured with 180W ATX power supply:Built-in 180W ATX power supply provides stable power supply to ensure the normal operation of the system.

Internally installable hard disk:A 2.5-inch or 3.5-inch hard disk can be installed internally to store data and programs,which is convenient for users to manage data and backup the system.

Cooling fan with filter:Equipped with a cooling fan with filter,it can effectively dissipate heat and prevent dust from entering,improving the reliability and stability of the system.

Customizable front panel:The front panel can be customized according to customer requirements to meet the needs of different users.

Technical specifications

Processor:Celeron M Intel N270 1.6G

Chipset:Intel 945GSE+ICH7-M

Memory:200-pin SO-DIMM DDR2 400/533 MHz

Ethernet:2×10/100/1000Mbps

Rear panel I/O interface:including PS/2 keyboard interface,PS/2 mouse interface,2 VGA ports,2 COM ports with power supply,2 RJ45 ports,4 USB 2.0/1.1 audio interfaces(3 jacks).

Expansion card:1×PCI

Power supply:180W ATX

Cooling system:2×ball fans

Impact peak acceleration:10g(working state)

Working environment:5Hz15Hz constant displacement 1.655mm(working state);15Hz200Hz constant acceleration 1.5g(working state)

Dimensions:482×450×44mm(width×depth×height)

Application fields

ABB SA811F modules are widely used in automation systems,for example

Chemical fiber industry:used for winding,stretching,metering,wire guiding and other processes.

Glass industry:used for flat glass annealing furnace,glass kiln stirring,edge drawing machine,bottle making machine and other equipment.

Electric arc furnace:used for automatic feeding and batching system.

Elevator:used for intelligent control of elevators.

In addition,ABB SA811F modules can also be used in CNC machine tool control,automobile production line,papermaking and other fields to improve process level and product quality.

Precautions

When using the ABB SA811F module,ensure that the system power supply is stable and follow the installation and operation guidelines provided by the manufacturer.

Inspect and maintain the module regularly to ensure that it is in good working condition.

If the module is found to be faulty or damaged,contact the manufacturer or professional maintenance personnel in time for replacement or repair.
