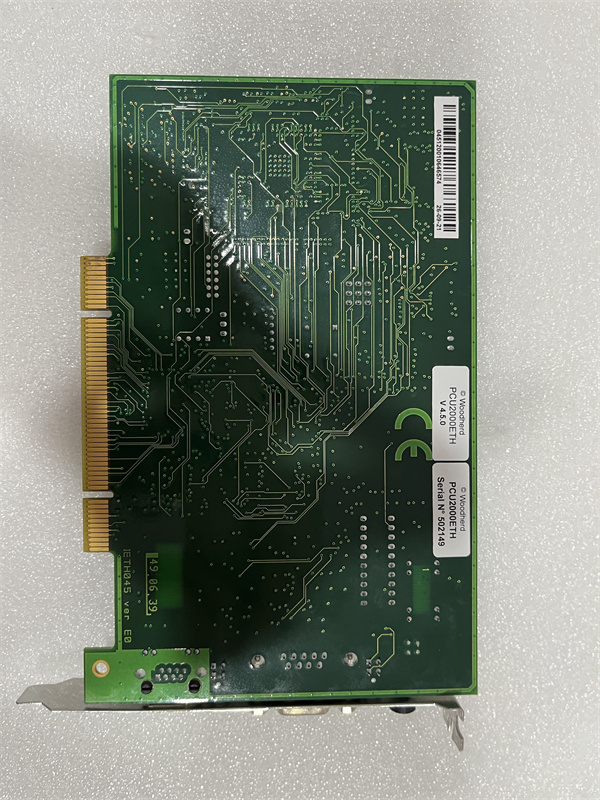

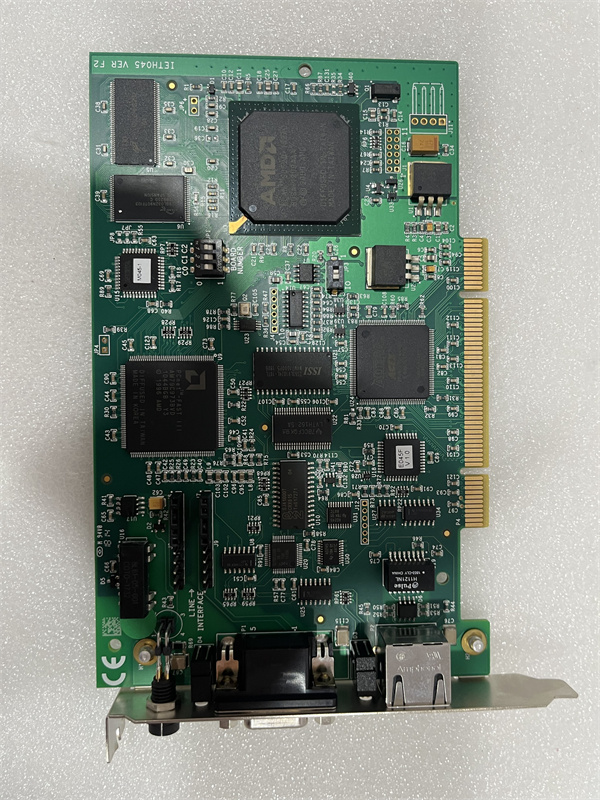

WOODHEAD APP-ETH-PCU PCU2000ETH Product Overview

WOODHEAD APP-ETH-PCU PCU2000ETH is a high-performance data acquisition and processing module designed for industrial automation and control systems.The following is a detailed introduction to the product.

Product Overview

Manufacturer:Woodhead(now part of Molex)

Model:APP-ETH-PCU-C(PCU2000ETH)

Type:Network Controller/Data Acquisition Card

Functional Features

Ethernet Communication

Provides powerful Ethernet communication functions,supports Fast Ethernet(10/100 Mbps)or Gigabit Ethernet(1 Gbps)connections,and achieves efficient data transmission.

Equipped with RJ45 interface,supports 10/100/1000BaseT Ethernet connection.

Data Acquisition and Processing

It can collect,process and store data from PLC(Programmable Logic Controller),sensors and other devices in real time.

Supports real-time data monitoring,recording and analysis.

Remote Monitoring and Control

Through Ethernet connection,remote monitoring and control of equipment and systems can be achieved to improve production efficiency and maintainability.

Serial and USB ports

May include serial ports(such as DB9,RS-232/422/485)and USB ports(such as USB 2.0)for connection and data exchange with other devices.

Protocol support

Supports multiple network protocols,such as TCP/IP,UDP,etc.

Supports industrial protocols,such as Modbus TCP,Profinet,EtherCAT,etc.,to facilitate data interaction with different devices and systems.

Operating system compatibility

May support multiple operating systems such as Windows,Linux,VxWorks,etc.

Physical characteristics and working conditions

Physical size:moderate size,such as 100 x 64 mm.

Operating temperature:typically 0 to 70 degrees Celsius.

Storage temperature:-40 to 85 degrees Celsius.

Product advantages

Highly integrated:PCU2000ETH integrates Ethernet communication interface and data processing capabilities,making data transmission more efficient and stable.

Easy to expand and integrate:With good scalability and integration,it can be easily connected with other automation equipment and systems to build a complete industrial automation solution.

Stable and reliable:The use of high-quality hardware and strict manufacturing processes ensures its stable and reliable performance.At the same time,it has perfect fault detection and self-recovery functions to ensure long-term stable operation in complex working environments.

Application fields

Industrial automation:used to connect and monitor various equipment on the production line to improve the degree of automation and production efficiency.

Intelligent manufacturing:as a key component in the intelligent manufacturing system,it realizes real-time data collection,analysis and optimization.

Energy management:used for monitoring and data collection of power grids and power generation equipment to improve energy management and system reliability.

Other fields:It is also widely used in fields such as oil and gas,transportation and logistics for remote monitoring and data collection to ensure safe and efficient operation.

In summary,WOODHEAD APP-ETH-PCU PCU2000ETH is a powerful and stable data acquisition and processing module suitable for industrial automation,intelligent manufacturing and other fields.
