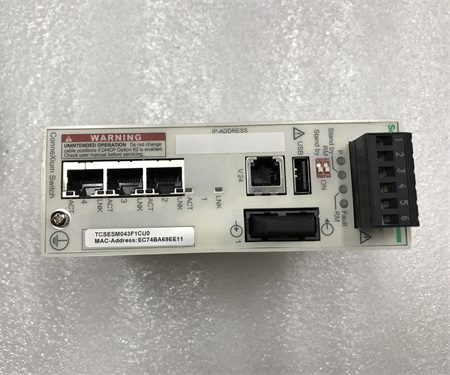

Schneider TCSESM043F1CU0 Product Details

TCSESM043F1CU0 is an Ethernet TCP/IP management switch of Schneider Electric ConneXium series,with high performance and stable network communication functions.It supports a variety of communication protocols and services,suitable for industrial automation,energy management,data centers and other scenarios.

Main features

Port configuration

It has 3 Ethernet electrical ports and 1 multi-mode optical port,supporting 10/100Base-TX Ethernet protocol.

The electrical port uses a shielded RJ45 copper wire interface,and the optical port uses a duplex SC optical fiber interface.

Network communication

Supports Ethernet TCP/IP,SSH,HTTP,HTTPS,SNMP,RS232,LLDP and other communication protocols.

Provides TFTP service,supports quality of service(QoS),port monitoring,port mirroring,address conflict detection and other functions.

Redundancy and reliability

Supports media redundancy protocol to improve the reliability of network communication.

It has a self-test function that can monitor the operating status of the device in real time.

Electrical and physical characteristics

The rated power supply voltage range is 12~48V DC,or 9.6~60V DC automatic voltage,and 18~30V AC automatic voltage.

The power consumption is 6.5W.

The device dimensions are 1.85 inches(47 mm)wide,5.16 inches(131 mm)high,and 4.37 inches(111 mm)deep.

The net weight is 0.88 pounds(0.4 kg).

Environmental adaptability

The operating ambient air temperature range is 32140°F(060°C).

The relative humidity range is 10~95%without condensation.

The IP protection level is IP20.

Certifications and standards

The product complies with CE,UL,RCM and other certification standards.

It complies with EU standards such as the Low Voltage Directive(2014/35/EU)and the Electromagnetic Compatibility Directive(2014/30/EU).

Complies with international standards such as EN/IEC 61131 and IEC 61850-3.

Application fields

TCSESM043F1CU0 switch is suitable for scenarios that require high-performance network communication,such as industrial automation,energy management,and data centers.It can be used as a network node to connect various industrial equipment and sensors to achieve data collection,transmission,and processing.At the same time,it can also be used as a network management platform to remotely monitor and manage network equipment.
