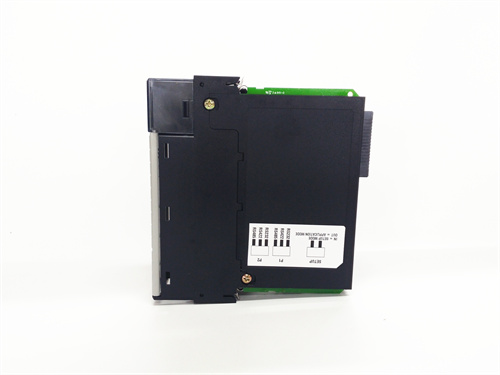

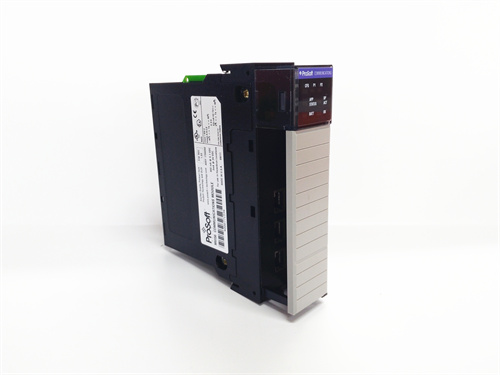

ProSoft MVI56-MCM Detailed Introduction

ProSoft MVI56-MCM is a Modbus communication module for Rockwell Automation ControlLogix platform produced by ProSoft Technology.It is mainly used to establish serial communication between ControlLogix PLC and devices supporting Modbus protocol to achieve data exchange and control.

Main features and functions

Configuration flexibility

Provides flexible configuration options,allowing users to configure various communication parameters such as baud rate,data format and addressing mode according to needs.

Communication parameters and data format can be easily set through the configuration software.

High-speed performance

With high-speed communication capability,efficient data transmission between ControlLogix PLC and Modbus devices is realized.

This high-speed performance ensures the possibility of real-time monitoring and control of Modbus devices from PLC.

Redundancy support

Supports redundant configuration to improve system reliability.

When the main path fails,the backup communication path is automatically started to ensure continuous operation and minimize downtime.

Diagnosis and status monitoring

Diagnosis and status monitoring functions are provided,allowing users to check the communication status in real time and detect communication errors.

Any problems can be solved during operation to improve the stability and reliability of the system.

Protocol conversion

Supports the conversion of multiple communication protocols,such as Modbus RTU,Modbus ASCII,etc.

It can realize data communication and protocol conversion between different devices.

Data acquisition and remote control

Data can be collected from multiple Modbus devices and transmitted to PLC for processing.

Remote control of connected Modbus devices through PLC.

Modular design

The modular design is convenient for installation,maintenance and replacement.

Users can select and configure the corresponding modules according to their needs.

Application scenarios

ProSoft MVI56-MCM module is widely used in industrial automation systems,especially in data acquisition,remote control and key industry applications.It can connect sensors,instruments and other equipment,collect field data,and transmit data to the central control system or monitoring platform for processing and display.In addition,ProSoft MVI56-MCM module is also widely used in water treatment,power,oil and gas and other industries.

Technical parameters

Communication interface:RS-232 and RS-485

Data rate:Support multiple baud rates

Data format:Support Modbus RTU and Modbus ASCII

Power supply voltage:24V DC
