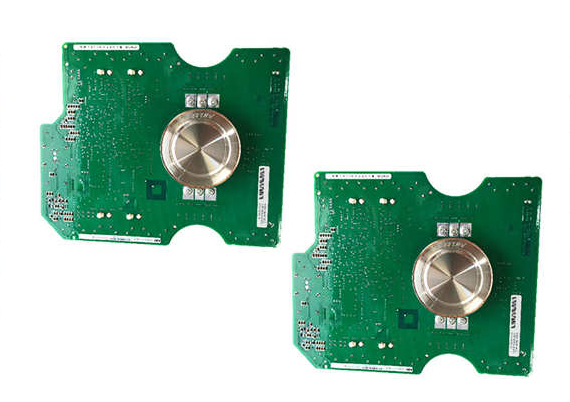

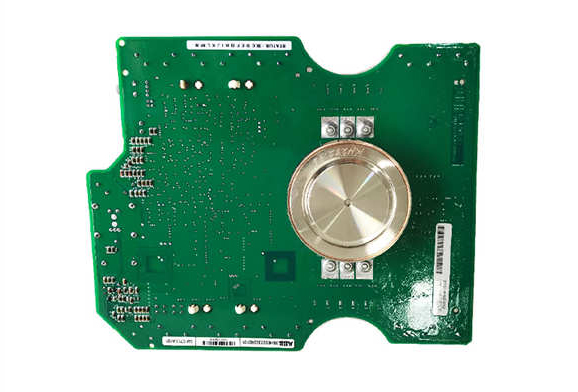

ABB 5SHX0660F0002 Product Introduction

ABB 5SHX0660F0002 is a powerful thyristor module.The following is a detailed introduction to the product.

Product Overview

Model:5SHX0660F0002

Brand:ABB

Type:SCR module/IGCT(Integrated Gate Commutated Thyristor)

Main functions

Power control:5SHX0660F0002 is mainly used to control the switching operation of high-power current to achieve precise power control in various applications.

Fast response:With fast switching speed,it can quickly respond to changes in the power system to ensure the stability and safety of the system.

Efficient heat dissipation:The efficient heat dissipation design can effectively dissipate heat and improve the reliability and stability of the module.

Product Features

Small size:5SHX0660F0002 is small in size,easy to install and use,and saves space.

Powerful functions:It can meet the needs of various industrial automation applications,including motor control,heating control,lighting control,etc.

High cost performance:affordable price,with high cost performance.

Technical Specifications

Rated current:60 amps

Rated voltage:1200V

Switching frequency:25 kHz

Control mode:Gate trigger

Heat dissipation method:natural cooling

Dimensions:76 mm x 57 mm x 34 mm

Weight:0.3 kg

Application fields

Power electronic systems:commonly used in power regulation and control systems,such as AC speed regulators,power dimmers and power controllers.

Industrial heating systems:can be used to control heating elements such as resistance heaters,induction heaters,etc.

Motor control:used for speed regulation and starting of motors to achieve precise control of motor operation.

Electric dimming system:In lighting applications,it is used in electric dimming system to adjust the brightness of lights.

Power transmission and distribution:It is used in power systems to achieve accurate distribution and regulation of power and improve the stability and efficiency of the power grid.

Electric welding equipment:can be used in equipment such as arc welding machines to control welding current and voltage.

Power factor correction device:In industrial and commercial power systems,it can be used for power factor correction equipment to improve the power factor of the system.
