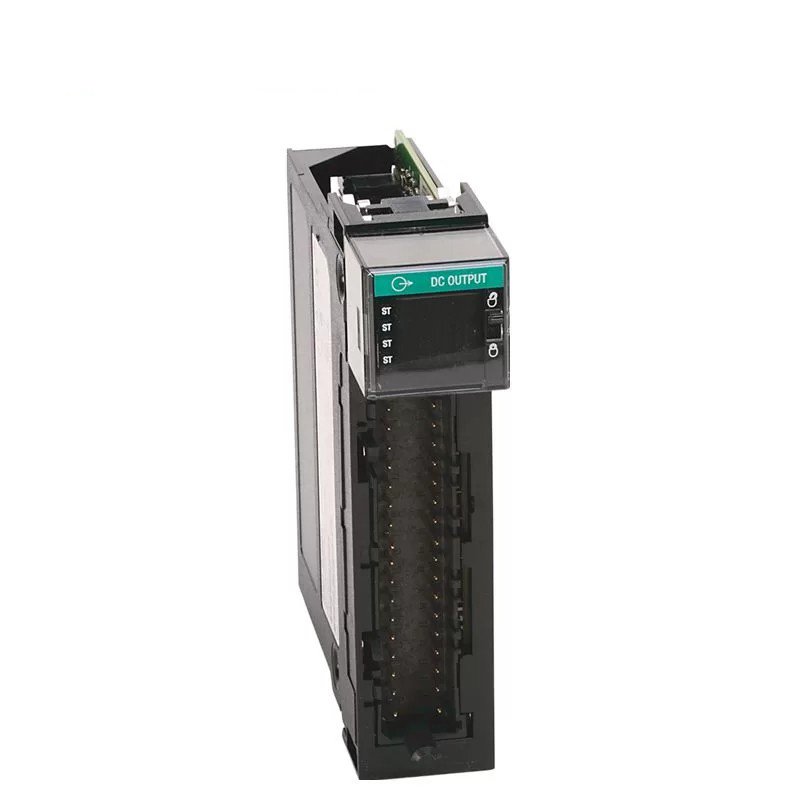

Allen-Bradley 1756-OB32 Product Details

1756-OB32 is a powerful automation control module,commonly used in industrial automation systems.The following is a detailed introduction to the 1756-OB32 module.

Basic information

Brand:Rockwell Automation Allen-Bradley

Model:1756-OB32

Product application:Automation control system

Certification:IOS9001

Functional features

Logical operations and mathematical calculations:The 1756-OB32 module can perform logical operations and mathematical calculations to meet the complex needs of automation control.

Timing control and counting control:The module has timing control and counting control functions,which can be used for precise time control and counting operations.

Data processing:The built-in processor of the module can process large amounts of data and complex algorithms,support multi-tasking and multi-threaded operations,and improve the operating efficiency of the system.

Communication function:The 1756-OB32 module supports a variety of communication protocols,such as Ethernet,serial port,CAN bus,etc.,and can exchange data and transmit control commands with other devices.

Data storage:The module has built-in memory that can store programs,data and configuration information,and supports non-volatile memory to ensure that data remains intact even when power is off.

Technical specifications

Number of output points:32 points(16 points/group)

Voltage category:12/24V DC source

Operating voltage range:10~31.2V DC

Output delay time:Off to On 60μs(nominal)/1ms(maximum),On to Off Off)200μs(nominal)/1ms(maximum)

Maximum current:0.5A per point(linearly decreasing from 0.35A at 50°C to 60°C),16A per module(linearly decreasing from 10A at 50°C to 60°C)

Surge current:1A per point,10ms,repeatable every 2 seconds(at 60°C)

Power consumption:4.8W maximum(at 60°C),heat dissipation 16.37BTU/hr

Typical application areas

The 1756-OB32 module is widely used in various industrial automation fields such as textile,packaging,material handling,etc.due to its powerful functions and flexible configuration.In these fields,the module can achieve precise automation control and improve production efficiency and quality.
