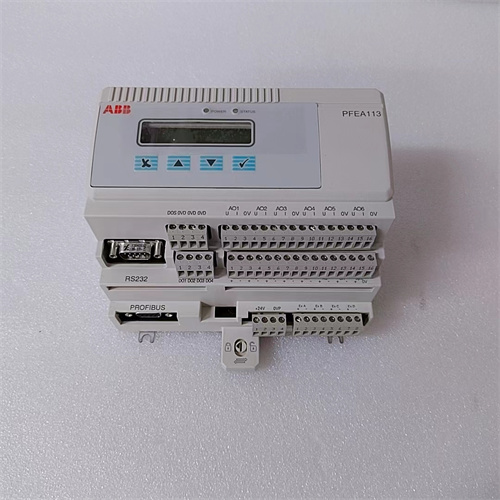

ABB PFEA113-20 Product Introduction

ABB PFEA113-20 tension controller is a tension control unit launched by ABB.It improves product quality and production efficiency by accurately controlling tension.The product adopts modular design,is easy to install and maintain,and supports multi-channel control.It can manage multiple tension areas at the same time to meet different tension control needs.

Technical Features

Modular design:PFEA113-20 adopts modular design,making installation and maintenance easier and more convenient.

Multi-channel control:The controller usually has multiple control channels and can manage multiple tension areas at the same time to meet the tension control needs in complex industrial processes.

PID control algorithm:PFEA113-20 adopts PID(proportional-integral-differential)control algorithm to ensure accurate control and stability of tension.

Digital input/output:It has digital input and output interfaces,which can communicate and exchange data with other control devices and sensors.

Programmability:Users can configure and adjust tension control parameters through programming to meet the needs of different applications.

Technical parameters

Rated voltage:24V DC

Rated current:5A

Power range:120W

Tension measurement range:0~10 kN

Tension accuracy:±0.1%

Control mode:tension control,speed control,position control

Product specifications:size 225mm×160mm×80mm,weight 2.0kg

Application areas

ABB PFEA113-20 tension controller plays an important role in multiple industrial fields,including but not limited to

Printing and coating:In the printing and coating process,the tension controller is used to ensure that the coil maintains proper tension throughout the production line to obtain high-quality output.

Stretching and extrusion:In industries such as plastics and rubber,the tension controller can be used in the stretching and extrusion process to ensure that the tension of the material is accurately controlled during the production process.

Winding:In the process of winding paper,metal,and plastic,the tension controller is used to adjust the winding speed to maintain proper tension to prevent material breakage or damage.

Textile industry:In textile production,the tension controller can be used to control the tension of yarn or fabric to ensure the quality and consistency of production.

Packaging:In the packaging industry,especially for the packaging of film,paper or other coils,tension controllers help ensure the tightness and stability of the packaging materials.

Metal processing:In the processing of metal strips or wires,tension controllers can be used to maintain proper tension to ensure smooth operation of the production line.

Paper and board production:In paper and board production,tension controllers help ensure tension control during processes such as stripping,cutting and winding.

Cable manufacturing:In cable production,tension controllers are used to ensure that the wire or cable has the proper tension during the stretching and winding process to prevent damage.
