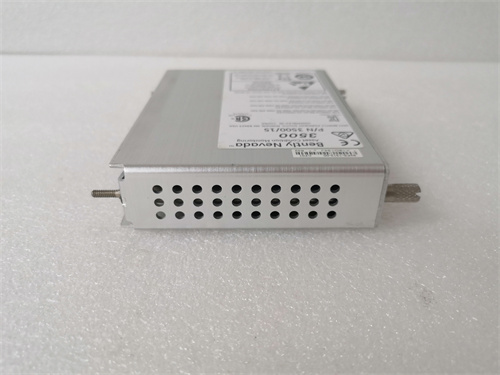

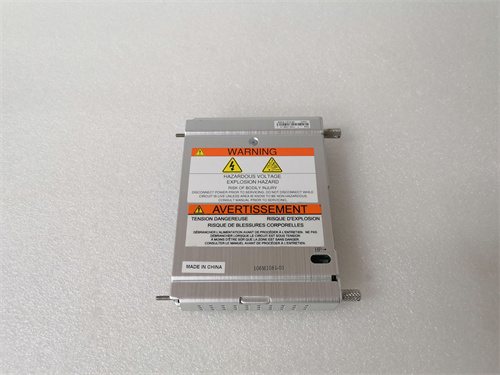

BENTLY 106M1081 Product Introduction

The BENTLY 106M1081 power input module is designed for 3500/15 systems to provide stable and reliable power input for industrial automation and monitoring systems.The module accepts AC power input and converts it into the DC power output required by the device,while providing a variety of output signal types to meet different application requirements.

Main Features

Input voltage range

The commonly accepted AC input voltage range is 110VAC or 220VAC(depending on the product design).However,there are also materials that mention the input voltage range of 12~48VDC,which may be for different models or versions of modules.

Output voltage and current

The output voltage range is usually 5VDC,providing stable power output for the device.

The output current can reach up to 10A,which can meet the needs of high-power equipment.

Efficiency and performance

The efficiency is greater than 90%,achieving high-efficiency conversion and reducing energy loss.

Comply with industry standards and specifications to ensure reliability and stability in industrial environments.

Safety isolation

With safety isolation function,it can prevent power supply interference from affecting the accuracy of measurement and control signals.

Operating temperature and humidity

The operating temperature range is usually-30°C to+65°C(-22°F to+150°F),and some sources mention the operating temperature range of-20°C to+50°C,which may be related to specific application scenarios or module versions.

The storage temperature range is-40°C to+85°C(-40°F to+185°F),and some sources mention-40°C to+70°C.

The humidity range is 95%relative humidity(non-condensing),ensuring stable operation in humid environments.

Dimensions and weight

The dimensions are 170 mm x 105 mm x 32 mm(length x width x height).

It weighs about 120 grams,which is easy to install and carry.

CPU

Adopts 32-bit RISC processor,providing powerful computing and control capabilities.

Application Fields

BENTLY 106M1081 power input module is widely used in industrial automation and monitoring systems,such as

Vibration monitoring system:used in industrial equipment to monitor vibration,prevent equipment failure,and improve equipment reliability.

Temperature monitoring system:used to monitor the temperature of equipment and environment to ensure that the equipment operates within a safe working range.

Energy industry:used to monitor the status of key equipment in power stations,oil and gas production facilities,etc.

Transportation:used to monitor the status of vehicles and equipment in railways,aviation,etc.

Installation and Configuration

BENTLY 106M1081 power input module is usually installed at the rear of the power module(depending on the rack or tray installation)or on the top of the power supply(inside the partition frame).When there is a backup power supply and the corresponding power input module,unplugging or plugging a power input module will not affect the operation of the 3500 rack.
