ABB PP825A 3BSE042240R3 Detailed Introduction

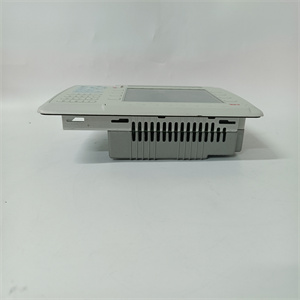

ABB PP825A 3BSE042240R3 is a 5.7-inch touch screen of the ABB Panel 800 series. It is usually used as a human-machine interface (HMI) to communicate with automation equipment such as ABB’s programmable logic controller (PLC) to monitor and operate the equipment.

Main Functions

Human-machine interaction: Provides an intuitive user interface through the touch screen, which is convenient for operators to monitor and control the equipment.

Data display: Displays the operating status, parameters, alarm information, etc. of the equipment.

Data input: Allows operators to enter commands, set parameters, etc.

Alarm management: Displays and manages various alarms of the equipment.

Trend chart: Displays the trend of process variables over time.

Product Features

High resolution: 5.7-inch display, providing clear images and text display.

Multi-touch: Supports multi-touch operation to improve operating efficiency.

Rich graphics functions: Supports various graphic elements such as buttons, switches, meters, etc., which can create intuitive user interfaces.

Powerful communication function: Supports multiple communication protocols and can communicate with various automation equipment of ABB.

Flexible configuration: Can be flexibly configured according to different application requirements.

Technical parameters

Display size: 5.7 inches

Resolution: 320×240 pixels

Touch type: Resistive touch screen

Operating temperature: 0℃~50℃

Protection level: IP20
