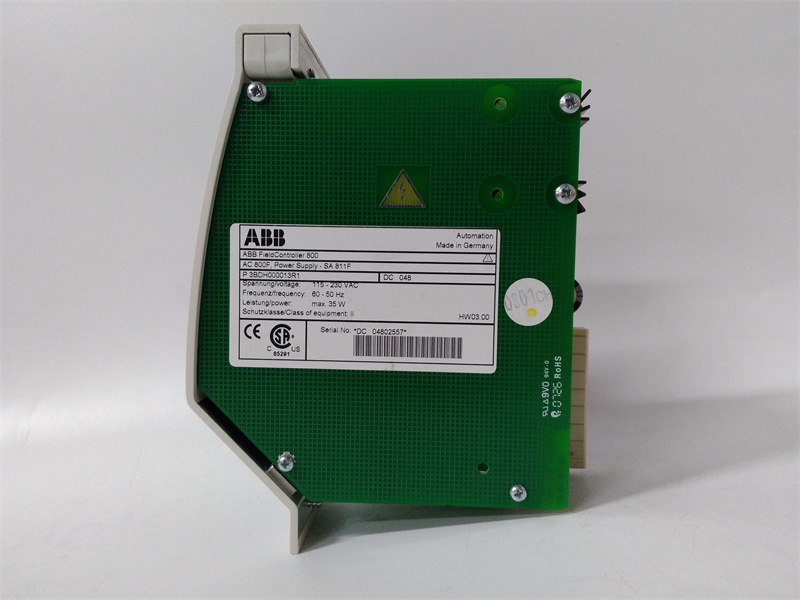

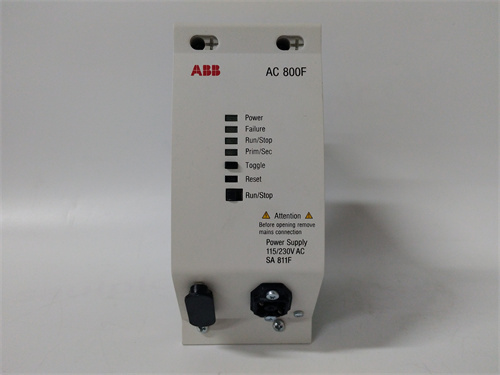

ABB SA811F 3BDH000013R1 Product Introduction

SA811F 3BDH000013R1 is a power module for DCS(distributed control system).The following is a detailed introduction to the module.

Main features

High integration:The module integrates power and control functions,is suitable for DCS system,and is convenient for users to integrate the system.

Display and control:Equipped with LCD display with backlight and operation buttons,it is convenient for users to set parameters and monitor status.

Strong scalability:Supports plug-in expansion communication modules,and the number of communication processors can be increased according to needs to meet different communication needs.

Rich communication interfaces:The CPU baseboard is integrated with optional Ethernet or ARCNET communication interfaces,and provides FBP bus adapter(PLC can only be used as a slave)and two serial ports,supporting multiple communication protocols,such as ASCII,Modbus,etc.

Technical specifications

Module type:power supply+control module

Application:DCS control system

Display:LCD with backlight

Communication module:plug-in expansion,can support up to 4 communication processors

Communication interface:Ethernet/ARCNET(optional),FBP bus adapter,2 serial ports

I/O expansion:local I/O expansion module base,can install up to 10 I/O modules

Power supply:module base with relay output uses 230V AC power supply

Application scenario

SA811F 3BDH000013R1 module is widely used in automation control systems in chemical,papermaking,power generation,petroleum,natural gas and other industries.As an important part of the DCS system,it provides reliable power supply and control functions,supports multiple communication protocols,and facilitates data exchange and integration with other devices.
