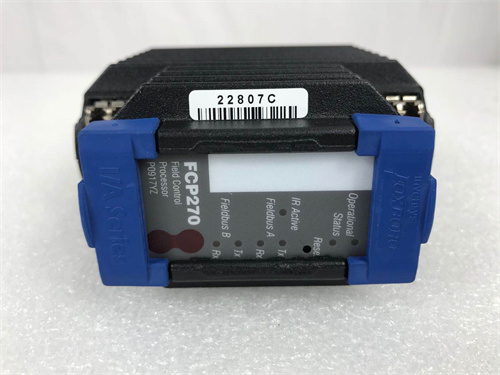

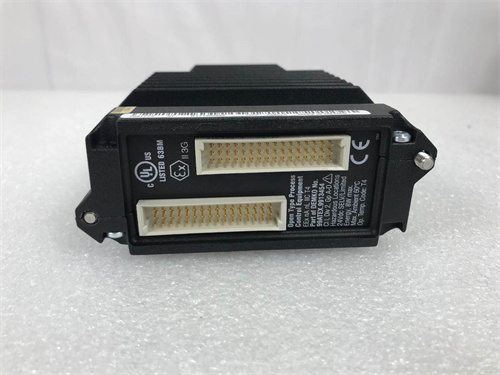

Foxboro FCP270 P0917YZ Product Details

FCP270 P0917YZ is a field control processor module produced by Foxboro(now part of Schneider Electric).The following is a detailed introduction to FCP270 P0917YZ.

Basic attributes

Product number:P0917YZ

Product type:Field control processor 270(FCP270)

Manufacturer:Foxboro(part of Emerson Process Management,now owned by Schneider Electric)

Technical specifications

Memory:16MB SDRAM,32MB flash

Input voltage(redundant voltage):24V DC typical value

Power consumption:maximum 8.5W per non-fault-tolerant module

Configuration:Single processor module,fault-tolerant type consists of two processor modules,and an interconnect fault-tolerant connector is integrated on the baseboard

Dimensions:14.7 cm×5.15 cm×11.4 cm

Weight:0.6 kg(shipping weight 1.5 kg)

Functional features

Execution control logic:FCP270 P0917YZ is capable of executing complex control logic,including regulation,logic,timing and sequential control.

Data acquisition and monitoring:The module supports data acquisition and monitoring functions,can collect data from sensors and actuators,and perform real-time monitoring.

Communication interface:Supports multiple communication interfaces,such as EtherNet/IP,Modbus,FOUNDATION Fieldbus,etc.,to achieve data exchange and integration with other control systems and equipment.

Programmability:With programmable functions,users can configure control logic and strategies according to specific application requirements.

Fault-tolerant operation:The use of two control modules provides unique patented fault-tolerant operation,which greatly improves reliability compared to other process controllers.

Application fields

FCP270 P0917YZ is commonly used in industrial automation,chemical engineering,oil and gas production,power systems,manufacturing and other industrial applications.In these fields,the module can achieve precise control and monitoring of various processes,improve production efficiency and safety.

Other features

Support fieldbus modules:Works with connected fieldbus modules(FBMs),supports up to 32 200 series FBMs and up to 128 200 series FBMs with fieldbus expansion module 100(FEM100).

Adaptability to harsh environments:Uses a rugged die-cast aluminum housing and can operate in class G3 harsh environments.

Time synchronization:Supports time synchronization using optional external time from GPS satellites.

In summary,FCP270 P0917YZ is a powerful and reliable field control processor module suitable for a variety of industrial automation and control systems.Its rich technical specifications and functional features enable it to meet the needs of a variety of complex industrial applications.
