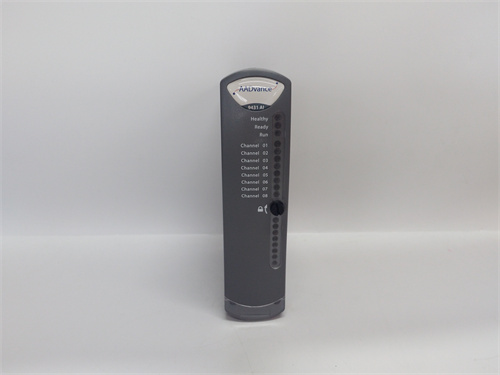

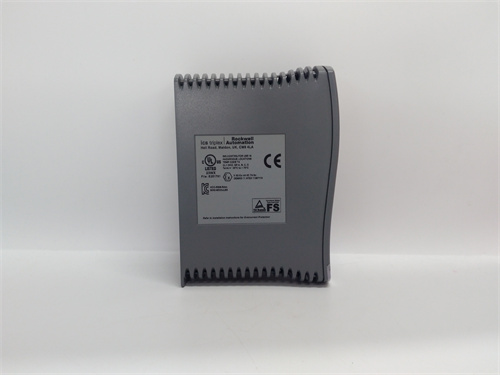

Allen-Bradley T9431 Product Overview

Allen‑Bradley T9431 is an analog input module with 8 isolated inputs,designed to receive and process analog signals in industrial automation and control systems.These signals usually come from sensors,transmitters or other measurement devices,and are used to monitor and control various parameters in the system,such as temperature,pressure,flow,etc.

Technical Specifications

Manufacturer:Allen-Bradley/Rockwell Automation

Series:AADvance Controller

Part Number:T9431

Product Category:Analog Input Module

Number of Inputs:8

Input Isolation:Supported

Voltage Type:DC

Input Voltage:0 to 32 VDC

Power:240 VDC(backplane voltage range 18 to 32 VDC)

Rated Power Consumption:3.3 Watts

Heat Dissipation:Dissipates 11.3 BTU of energy per hour as heat

Weight:10 ounces(280 grams)

Dimensions:Suitable for mounting in an enclosure on a DIN rail or wall

Pollution Degree:Pollution Degree 2

Rated Air Temperature:60 degrees Celsius(140 degrees Fahrenheit)

Safety Certification:Approved for safe operation in applications in non-hazardous industrial locations

Product Features

High Precision:Allen‑Bradley T9431 has high precision and stability,can accurately receive and convert analog signals,and ensure the accuracy and reliability of system control.

Isolated input:The module has 8 isolated input channels,which can effectively isolate the input signal,prevent signal interference and damage,and improve the anti-interference ability and safety of the system.

Easy to configure and set up:Allen‑Bradley T9431 is flexible in design and easy to configure and set up.It can adjust and configure parameters according to actual needs,which is convenient for users to use and maintain.

Compatible with PLC:The module can be used with PLC(Programmable Logic Controller)to achieve integration and collaborative work of automated control systems.

Application fields

Allen‑Bradley T9431 analog input module is widely used in the field of industrial automation and control systems,including manufacturing,energy,transportation,water treatment and other industries.It can be used to monitor and control various process parameters such as temperature,pressure,flow,liquid level,etc.,to improve production efficiency,reduce energy consumption and failure rate,and ensure the stable operation and safety of the system.
