ABB 3BSE042237R2 Detailed Introduction

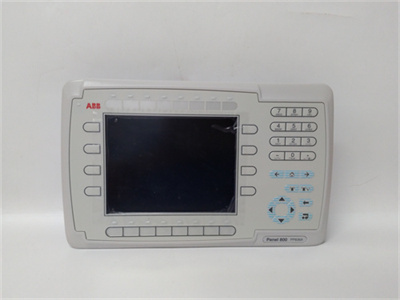

ABB 3BSE042237R2(PP836A)is a touch screen operation panel produced by ABB.It is a spare part of the industrial control module in the automation system and is widely used in the field of industrial automation and control.The following is the detailed information of the product.

Product Overview

Model:3BSE042237R2(PP836A)

Manufacturer:ABB

Type:Touch Screen Operation Panel

Function

Display function:Equipped with TFT/LED display technology,supports multiple display modes and effects,and can display text,graphics,images and other information.

Touch function:Supports touch screen operation,and users can interact by touching the screen,such as selection,input,operation,etc.

Communication interface:Supports multiple communication interfaces,such as serial port,USB interface,Ethernet interface,etc.,to facilitate data communication with other devices or systems.

Power supply options:Supports multiple power supply options,such as 12V DC,24V AC/DC,etc.,to meet the power requirements of different systems.

Technical specifications

Display size:61mm×33mm

Display type:White controllable backlight,adjustable contrast

Number of display lines:4 lines

Number of characters per line:12/16 characters(depending on the selected character set)

Supply voltage:12V DC or 24V AC/DC

Permitted range:10.2 to 28.8V DC or 20.4 to 26.4V AC(47 to 63Hz)

Power consumption

Typical 65mA at 24V DC(typ.40mA at 12V DC)

Typical 90mA at 24V AC

Input buttons

6 standard keys

4 function keys(tactile appearance buttons)

Cutout dimensions:119.5mm×78.5mm×1.5mm to 4.0mm(for installation of distribution board)

Overall dimensions:128.2mm×86mm×38.7mm

Product Features

High-resolution display:Equipped with high-resolution TFT/LED display graphics,it can present delicate and realistic image effects.

Multi-protocol connection:Supports multiple protocol connections and can be seamlessly integrated with PLC,other automation equipment,etc.to ensure the real-time and accuracy of communication and data transmission.

Easy to use:With a friendly HMI interface and intuitive operation,users can easily get started without long-term training.

Strong compatibility:Compatible with a variety of systems,such as OVATION,WDPF and MAX0,etc.,providing a comprehensive solution for industrial automation.

Reliability and stability:With high reliability and stability,it can operate stably in harsh industrial environments and is suitable for various automation and control system application scenarios.

Customizability:It can be customized according to user needs,such as display content,interface design,communication protocol,etc.,to meet the needs of different users and special application scenarios.

Application fields

Manufacturing industry:used for precise control and monitoring of production line equipment to improve production efficiency and product quality.

Energy industry:such as wind and solar power stations,real-time monitoring of equipment operation status and remote control.

Logistics industry:Provides intuitive and efficient operation interface in warehouse management,cargo tracking and transportation control.

Food and beverage industry:Used to control equipment on the production line to ensure the accuracy and efficiency of the production process and meet high requirements for hygiene and safety.

Advantages

Intuitive operation:The touch screen operation interface is intuitive,easy to operate,and improves work efficiency.

High reliability:Long design life,simple maintenance,and safe use.

Energy saving effect:With energy-saving monitoring function,the energy-saving effect is clear at a glance.

Extended function:Supports multiple input and output terminals,simple flux vector control function,multi-pump control function,etc.to meet complex application requirements
