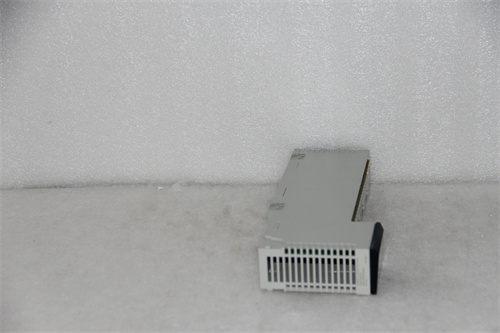

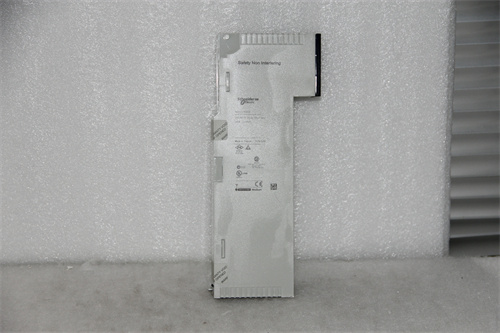

Schneider 140DDO35300 Product Introduction

Schneider 140DDO35300 is part of Schneider Electric’s Modicon series of programmable controllers(PLCs)and is a high-performance digital output module.It is designed for industrial automation and provides 32 digital output channels.Each channel is equipped with two types of contacts,normally open and normally closed,which can be flexibly used to control various devices such as motors,lights,valves,etc.

Main Features

Output channels:The 140DDO35300 module has 32 digital output channels,divided into 4 groups,each with 8 points.Each channel is equipped with normally open and normally closed contacts,providing users with flexible control options.

Working voltage:The module uses 24V DC voltage,which can stably provide power support for the output signal.

Current output capacity:The maximum current of each channel can reach 1A,the maximum current of each group is 4A,and the maximum current of the entire module is 16A.It has strong driving capability and can meet the control requirements of various devices.

Operating temperature range:The operating temperature range of 140DDO35300 is between-20°C and+60°C,which can adapt to a wide range of industrial environmental temperature conditions and ensure stable operation under different working conditions.Its storage temperature range is-40°C to+85°C,and the stability and reliability of the product can be maintained even when the device is not working.

Communication protocol:The module supports Modbus RTU communication protocol,which is convenient for communication and data interaction with other industrial equipment to achieve system integration and automatic control.

Status indication:140DDO35300 is equipped with multiple status indicators,including 32 green LEDs for indicating input status,1 red LED for indicating external fault detection,and 1 green LED for indicating bus communication status,so that users can understand the working status of the module in real time.

Protection function:The internal output of the module has 5A fuse protection,and each output point also has 3A protection,which can effectively prevent overcurrent and other faults from damaging the module.

Isolation performance:The isolation voltage between the channel and the bus is 1780V RMS DC(lasting 1 minute),and the isolation voltage between the groups is 500V RMS DC(lasting 1 minute),which ensures the independence and anti-interference ability of the signal.

Application field

The 140DDO35300 module is widely used in industrial automation,control systems,mechanical control and other fields.In the medical and health field,it can be used for the automatic control of medical equipment;in the mining field,it can be used for remote monitoring and control of mining equipment;in the energy field,it can be used for the automatic control and monitoring of power systems.In addition,it can also be used in other industrial automation fields such as transportation,manufacturing,and chemical industry.

Product advantages

High performance:The 140DDO35300 has powerful functions and reliable performance,which can meet various complex control needs.

Easy to integrate:The module supports the Modbus RTU communication protocol,which is convenient for communication and data interaction with other industrial equipment,and improves the system’s integration and automation level.

Durable and reliable:The module is made of high-quality materials and advanced production processes,with high durability and reliability,reducing the risk of system failure.

Easy to maintain:The front panel design of the module is intuitive and easy to understand,which facilitates users to perform daily maintenance and troubleshooting.
