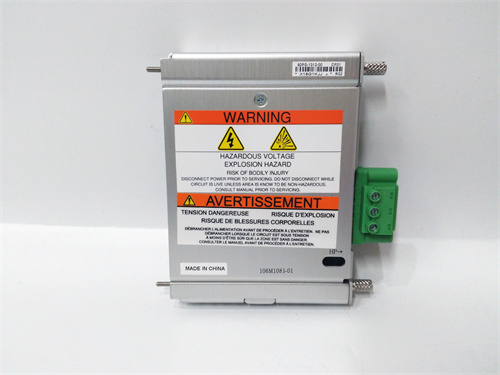

Bently Nevada 106M1081-01

The BENTLY NEVADA 106M1081-01 module is a power input module produced by Bentley Nevada,designed for 3500/15 systems.The module is able to accept AC power input and convert it into the DC power output required by the device,while providing a variety of output signal types to meet different application requirements.

Main Features

Power input

Accept AC power input,the common input voltage range is 110VAC or 220VAC(depending on the product design).

Some materials mention an input voltage range of 12-48VDC,but this may be for different models or versions of modules.

Output signal

Provide one or more output signal types,such as analog output(such as voltage or current output)or digital output(such as switch signal or digital communication protocol).

The output voltage range is usually 5VDC,providing stable power output for the device.

The output current can reach up to 10A,which can meet the needs of high-power equipment.

Industry standards and specifications

Comply with industry standards and specifications to ensure reliability and stability in industrial environments.

Safety isolation

With safety isolation function,it can prevent power supply interference from affecting the accuracy of measurement and control signals.

Environmental adaptability

The operating temperature range is usually-30°C to+65°C(-22°F to+150°F),and some sources mention an operating temperature range of-20°C to+50°C,which may be related to specific application scenarios or module versions.

The storage temperature range is-40°C to+85°C(-40°F to+185°F).

The humidity range is 95%relative humidity(non-condensing),ensuring stable operation in humid environments.

Application fields

The BENTLY NEVADA 106M1081-01 module is widely used in industrial automation and monitoring systems,such as

Vibration monitoring system:used to monitor vibration in industrial equipment,prevent equipment failure,and improve equipment reliability.

Temperature monitoring system:used to monitor the temperature of equipment and environment to ensure that the equipment operates within a safe working range.

Energy industry:used in power plants,oil and gas production facilities and other fields to monitor the status of key equipment.

Transportation:used to monitor the status of vehicles and equipment in fields such as railways and aviation.

Product specifications

Dimensions:170 mm×105 mm×32 mm(length×width×height).

Weight:about 120 grams(the exact weight may vary slightly due to product version or manufacturing differences).

CPU:32-bit RISC processor,providing powerful computing and control capabilities.
