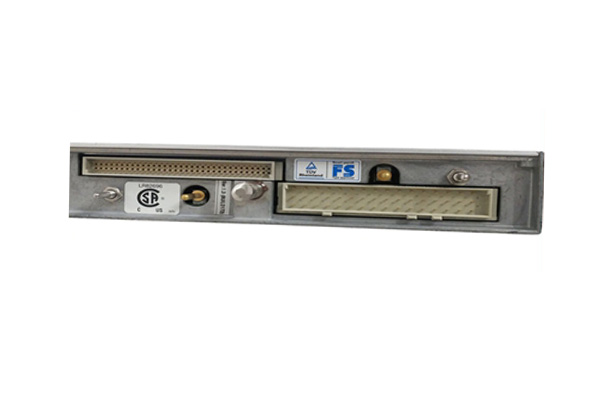

TriconeX 3201 Digital Input Unit Product Overview

The Triconex 3201 digital input unit is an important module in the Triconex control system, designed to receive digital input signals from external devices and transmit them to the main control system. The following are brief characteristics and applications:

Main features

Digital input support: Receive digital signals (on/off status) from sensors, switches, buttons, and other devices.

High redundancy design: Compatible with the Triple Redundancy (TMR) structure of the Triconex system, ensuring stable operation of the system even in the event of partial module failures.

High reliability: Designed for high security applications, meeting SIL3 safety standards to ensure the accuracy and stability of digital signal transmission.

Modular design: Supports hot swappable functionality for quick replacement and maintenance, reducing downtime.

Multi channel support: typically provides multiple input channels that can simultaneously connect multiple devices, enhancing the scalability of the system.

Application areas

Safety Instrumented System (SIS): Used to receive safety related digital input signals, perform emergency shutdown or other safety controls.

Process control system: used to receive status signals from process equipment, such as valve switches, sensor triggers, etc.

Emergency Shutdown System (ESD): Used to monitor the status of external devices and trigger emergency shutdown actions.

Advantages

High reliability and safety, compliant with SIL3 standards, ensuring stable execution of critical control tasks.

Modular design, supporting hot swapping, easy to maintain and replace quickly.

Strong adaptability, capable of processing multiple digital input signals, meeting complex industrial control requirements.
