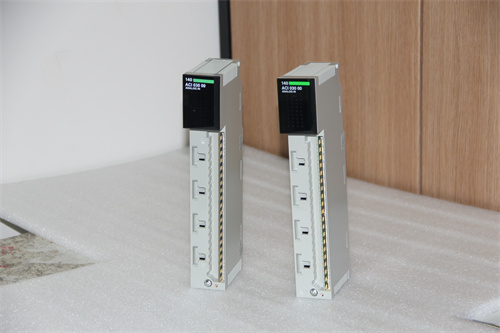

SCHNEIDER 140ACI03000 Product Introduction

SCHNEIDER 140ACI03000 is an analog input module produced by Schneider Electric.The following is a detailed introduction to the product.

Product Overview

Brand:Schneider

Model:140ACI03000

Series:Modicon Quantum PAC Series

Origin:France

Product Function

Analog Input:This module has 8 analog input channels for receiving signals from sensors,transmitters or other analog signal sources.

Signal Conversion:It can convert the received analog signal into a digital signal for processing and analysis in the control system.

Resolution:The analog input resolution is 12 bits,which can provide high-precision measurement.

Technical Specifications

Number of inputs/power consumption:8 channels/2W

Address requirements:9 input words

Absolute maximum input:50V DC,25mA

Input impedance:250 Ohm(current+/-0.01%),>20MOhm(Voltage)

Absolute accuracy error:+/-0.1%maximum full scale;+/-0.05%full scale

Linearity error:+/-0.04%

Temperature offset accuracy:<=0.005%full scale/℃;<=0.0025%full scale/℃

Common mode rejection:>-72dB(60Hz)

Fault type:undervoltage range 15V;disconnection 420mA

Required bus current:240mA

Communication and interface

Communication interface:The module usually communicates with the control system through standard industrial communication interfaces such as Modbus,PROFIBUS,etc.to transmit digital signals and measurement data.

Front panel interface:including USB port,Ethernet TCP/IP port with web server,Modbus Plus and at least one Modbus serial port,etc.

Application field

This module is widely used in industrial control systems,data acquisition and monitoring in automation processes,as well as monitoring and controlling parameters such as temperature,pressure,flow,voltage,current,etc.

Other features

Reliability:Industrial automation equipment produced by Schneider Electric is generally of high quality and reliability to meet the requirements of industrial environments.

Compatibility:All products in the Modicon Quantum series are covered by MRO Electric’s 2-year warranty,and the module is able to integrate seamlessly with other components of the Modicon Quantum PLC system.

Expandability:The onboard memory of Unity Quantum can exceed 3MB,and there can be more than 7MB of extended memory on the PCMCIA card for data and application storage.
