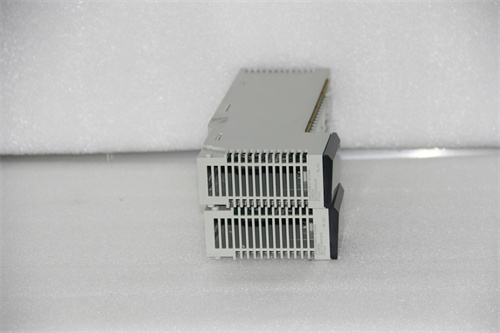

Schneider 140ACI0400 Product Introduction

Schneider 140ACI04000 is an analog input module that belongs to the Modicon Quantum automation platform product series of Schneider.The following is a detailed introduction to the module.

Basic features

Product type:analog input module.

Number of channels:16 analog input channels,which can receive multiple analog signals at the same time and improve the data processing capability of the system.

Input range:Supports a variety of analog signal input ranges,such as 4~20mA,0~20mA,0~25mA,etc.,to meet the needs of different applications.

Resolution:The analog input resolution is as high as 0~16000 counts,providing high-precision signal conversion and measurement capabilities.The specific range depends on the input signal,such as 0~4095 counts corresponding to 4~20mA input.

Accuracy:It has low linearity error and absolute accuracy error to ensure the accuracy and reliability of the measurement results.The maximum linearity error is+/-6μA(the specific value depends on the input signal range),and the absolute accuracy error is+/-0.125%full range.

Technical specifications

Address requirements:17 input words.

Maximum input:30mA.

Input impedance:250 ohms.

Temperature offset accuracy:<=0.0050%full scale/°C.

Common mode rejection:>-90dB(60Hz).

Insulation between each channel and the bus:1780V AC(for 60s).

Update time:15ms(2-wire/4-wire).

Fault type:wire break(4~20mA).

Bus current requirement:360mA.

Power consumption:5W.

Operating temperature:0~60°C.

Storage environment temperature:-40~85°C.

Relative humidity:95%(no condensation).

Operating altitude:<=5000m.

Protection function

Built-in overcurrent,overvoltage and other protection functions to ensure that the module can operate safely under abnormal conditions.

Application and Integration

Schneider 140ACI04000 analog input module is widely used in various industrial automation and control systems,such as manufacturing,energy,water treatment and other fields.

It can be used to receive analog signals output by sensors,transmitters and other devices,and convert them into digital signals for processing and control by the central processor.

The module is compact and easy to integrate with other industrial automation equipment and systems.

Product Advantages

High performance:provides high channel count,multiple input ranges,high resolution and high accuracy to meet the needs of complex industrial automation systems.

Reliability:built-in protection functions ensure stable operation of the module in harsh environments.

Easy to integrate:the compact design makes the module easy to integrate with other devices and systems,reducing system construction costs and time.
