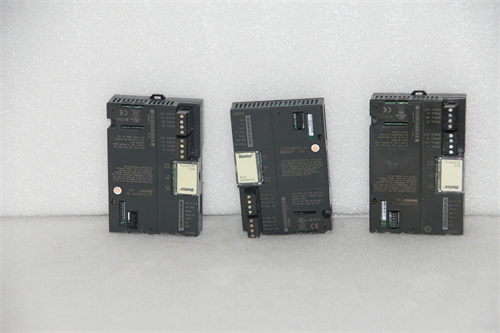

GE Fanuc IC200GBI001-LL Product Overview

GE Fanuc IC200GBI001-LL,often referred to as IC200GBI001,is a VersaMax communication module manufactured by GE Intelligent Platforms(now part of GE Fanuc).The following is a detailed introduction to the GE Fanuc IC200GBI001-LL.

Product Overview

Brand and Model:GE Fanuc,IC200GBI001-LL

Product Type:VersaMax Communication Module

Main Function:As a Genius Network Interface Unit(NIU),it allows VersaMax I/O modules to be installed in a distributed I/O architecture

Technical Specifications

I/O Module Capacity:Each rack can carry up to 8 I/O modules,and supports the installation of up to 8 racks,that is,it can support up to 64 I/O modules.

Transmission Speed:Supports a transmission speed of 153.6 kbaud for extended network configurations,and the standard configurations are 153.6 kbaud,76.8 kbaud,and 38.4 kbaud.

Memory Capacity

Discrete Input/Output:Up to 1024 points.

Analog Input/Output Memory:128 bytes.

Network Input/Output Scanning:Manages network input scanning of 128 bytes per scan and output of 128 bits per scan.

Power Consumption:250 mA 4VDC and 10 mA 3.3VDC.

Compatibility

Compatible with a variety of controller systems,including 90-70 Series,PACSystem RX7i and PACSystem RX3i.

Supports Genius protocol,so it is compatible with both previous and modern controller platforms.

Physical Features

Connection Terminals:Equipped with dual Genius connection terminals,the upper terminal is used as the main Genius connection point,while the lower terminal is used as a redundant port.

Design:The port is designed for daisy chain topology connection,and a terminal resistor is installed at both ends of the communication cable,with the appropriate resistance value of 75,100,120 or 150 ohms,across terminals serial 1 and 2.

Application Fields

GE Fanuc IC200GBI001-LL is widely used in industrial automation,including power,petroleum,chemical,metallurgy,water treatment and other industries.Its powerful communication capability and high reliability make it an ideal choice in distributed I/O architecture.
