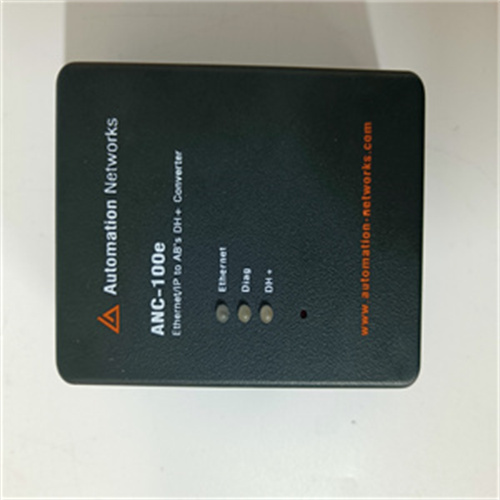

PROSOFT ANC-100e Product Overview

The PROSOFT ANC-100e adapter can connect a computer on Ethernet to a DH+network,thereby communicating with various DH+-enabled devices(such as Allen‑Bradley’s PLC5,SLC5/04,SLC5/05,ControlLogix series,etc.).This adapter plays an important role in industrial automation and control systems,enabling interconnection between different networks.

Main Features

Protocol Conversion and Communication

ANC-100e supports conversion between Ethernet/IP and DH+protocols,allowing Ethernet devices to communicate seamlessly with devices on the DH+network.

Automatic Configuration

The adapter has an automatic configuration function that can automatically detect and configure cable polarity,node number,and baud rate,providing a fast and easy connection experience.

Wide software compatibility

ANC-100e can run with Ethernet/IP network drivers in most industrial communication software suites(such as Allen‑Bradley RSLinx Classic/Gateway/Enterprise,etc.),with good software compatibility.

LED indicator status display

The adapter is equipped with three LED lights to display visual status and diagnostic information.Including”Ethernet”LED indicating Ethernet data exchange,”Diag”LED indicating DH+network status,etc.,which facilitates users to troubleshoot and monitor status.

Power supply and protection

The device requires a 9-24V DC power supply,and the specific current consumption depends on the voltage(94mA at 9V and 35mA at 24V).All device inputs(power,DH+,Ethernet)are protected by TVS to prevent spikes and transients,improving the stability and reliability of the device.

Application fields

PROSOFT ANC-100e adapters are widely used in industrial automation,control system integration,remote monitoring and data acquisition.It is particularly suitable for scenarios where Ethernet devices need to be connected to DH+networks,such as manufacturing,energy,transportation,and construction.
