GE DS200DDTBG1A Product Overview

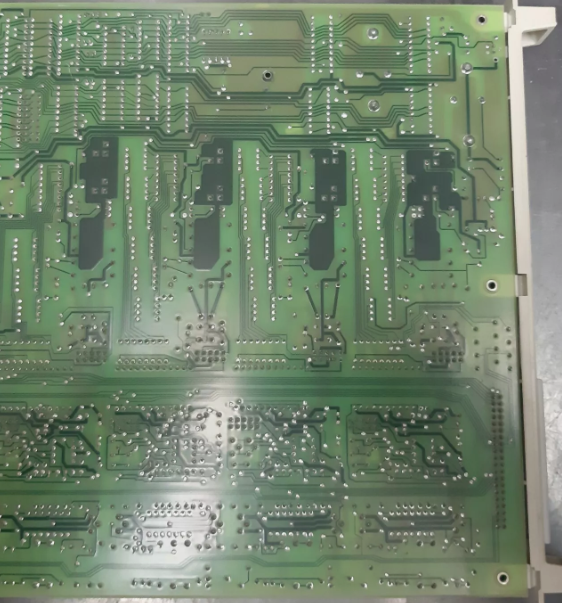

GE DS200DDTBG1A is an LCI auxiliary I/O terminal board produced by General Electric(GE)Industrial Systems.It is suitable for GE LS2100 control systems and is widely used in industrial automation and power systems.

Product Overview

Model and brand:DS200DDTBG1A,manufacturer is GE Industrial Systems.

Product type:LCI auxiliary I/O terminal board.

Application areas:industrial automation,control systems,mechanical equipment control,power systems,etc.

Technical specifications

Input and output functions

Voltage output:has four buffered analog outputs.

Signal input:supports high voltage AC input,high current signal input,low current signal input and 4-20 mA current loop input.

Non-dedicated voltage input:provided by a differential input voltage amplifier,which inputs the analog VCO to the ADMA board.

LED indicator

There are 17 LEDs in total,1 of which is used to indicate the board status,and the rest are driven by software and hardware.

Jumpers and test points

Equipped with 12 3-pin jumpers for reallocating LEM and CT input channels.

Provides 33 test points for signal measurement.

Power supply and connection

Power supply:Power is provided by the included ADMA board.

Input connection:Screw-type terminal blocks are used with voltage surge protection.

Communication interface:Supports connection with ADMA boards such as IS200ADMAH1A to achieve data interaction.

Product features

Modular design:Easy to install,replace and maintain.

High reliability:Wide temperature range design to adapt to harsh industrial environments.

Protection function:Equipped with multiple protection mechanisms such as overcurrent protection and overvoltage protection to ensure safe operation of the equipment.

Remote monitoring:Supports remote monitoring and fault diagnosis functions to improve equipment maintainability.

Application scenarios

Industrial automation:As an important part of the control system,it realizes signal acquisition and transmission.

Power system:Used for protection and control of generators,motors and other equipment.

Distributed Control System(DCS):acts as a bridge between field devices and controllers to achieve real-time data interaction
