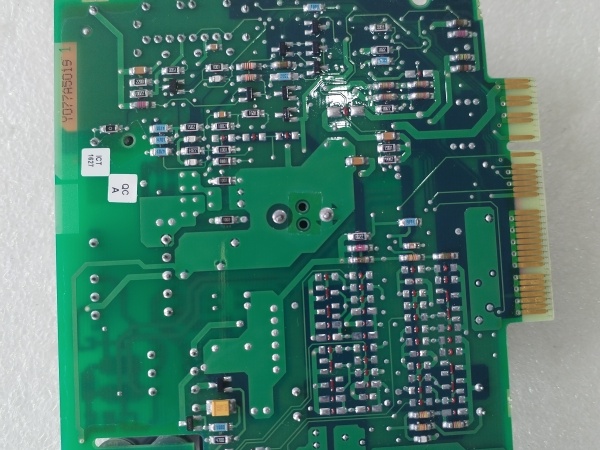

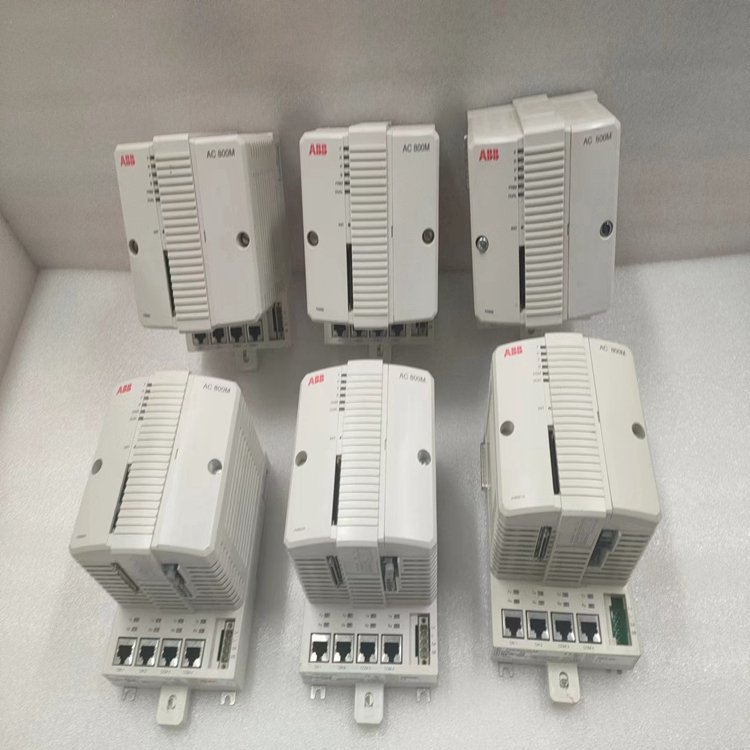

ABB PM866AK01 Product Introduction

ABB PM866AK01 is an industrial automation controller produced by ABB.It integrates advanced microprocessor technology,rich I/O functions and powerful communication capabilities,and is suitable for various industrial automation control systems.

Main features

High-performance processor

Processor model:MPC866

Clock frequency:133 MHz

Processing power:High-speed processing capability,can handle large amounts of data,performance reaches 0.09 milliseconds(1000 Boolean operations)

Memory and storage

Total memory:64 MB

Application available memory:51.389 MB

Flash memory:4 MB,for firmware storage

I/O functions

Number of word inputs:16

Number of word outputs:16

Input type:single-ended and differential

Output type:relay

Communication interface

Ethernet port:2 RJ45 Ethernet ports(CN1,CN2),supporting 10 Mbit/s rate

Serial port:2 RJ45 serial ports(COM3,COM4),COM3 is an RS-232C port with modem control signal,COM4 is an isolated port for connecting configuration tools

Power supply and power consumption

Power supply:24 V DC(19.2 V~30 V DC)

Power consumption:Typical value is 210 at+24V mA,maximum 360 mA

Power dissipation:maximum 8.6 watts

Other features

Supports CPU redundancy to improve system availability

Modular design for easy expansion and maintenance

Built-in real-time clock and LED indicator

Equipped with INIT button and CompactFlash interface

Passed comprehensive EMC certification

Application areas

ABB PM866AK01 controller is usually used in automation control systems in industrial environments.It can work with other industrial automation equipment to achieve automatic control and management of production processes.It is widely used in electronics,metallurgy,chemical industry,power plants,steel mills,rubber,cement,mechanical equipment,construction and other industries.

Product advantages

High performance and stability:With advanced processors and rich memory resources,PM866AK01 can provide high-speed and stable data processing capabilities to ensure stable operation of the system.

Flexible communication capabilities:Supports multiple communication interfaces and protocols,which facilitates data exchange and remote monitoring with other devices.

Easy to expand and maintain:The modular design allows the system to be flexibly expanded according to actual needs,while facilitating later maintenance and upgrades.

High security:Multiple safety certifications have been passed to ensure that the system can maintain safe and reliable operation in harsh industrial environments.
