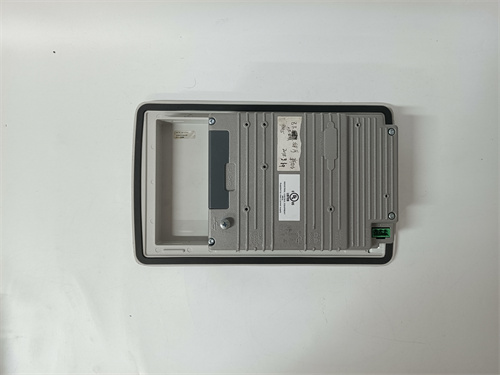

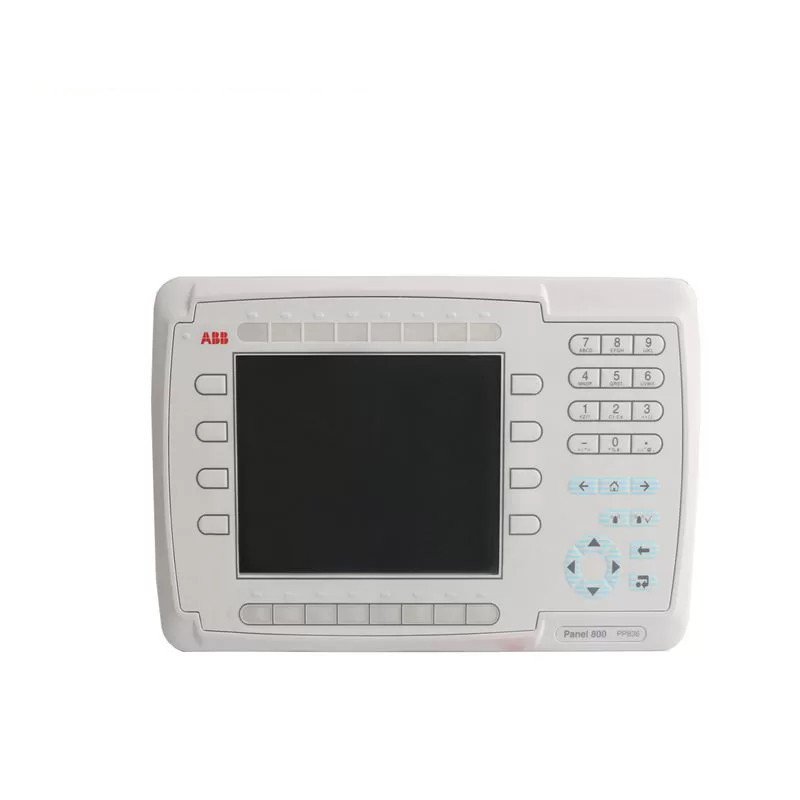

ABB PP836A 3BSE042237R2 Product Introduction

PP836A 3BSE042237R2 is an important component in ABB’s automation control system.It is widely used in the field of industrial automation to realize PLC(Programmable Logic Controller)and human-computer interaction,and to realize the operation and maintenance of the automation control system.

Main Features

Display function

Equipped with an 8-inch TFT color touch screen with a resolution of 1600×1200 pixels,it can display clear and bright images.

Supports a variety of display modes and effects to meet different application requirements.

Touch function

With touch screen function,users can interact by touching the screen,such as selection,input,operation,etc.,to improve operation efficiency and convenience.

Multiple interfaces

Supports a variety of communication interfaces,such as serial port,USB interface,Ethernet interface,etc.,to facilitate data communication and interaction with other devices or systems.

Multiple power options

Supports a variety of power options such as 12V DC,24V AC/DC,etc.,to meet the power requirements of different systems.

Reliability and stability

It has high reliability and stability and can operate stably in harsh industrial environments.

Customizability

It can be customized according to user needs,such as display content,interface design,communication protocol,etc.,to meet the needs of different users and special application scenarios.

Technical parameters

Display type:8-inch TFT color touch screen.

Resolution:1600×1200 pixels.

Power supply options:12V DC,24V AC/DC.

Communication interface:serial port,USB interface,Ethernet interface,etc.

Protection level:meets IP65 standard(when properly installed on the distribution board).

Input buttons:6 standard keys,4 function keys(tactile surface buttons).

Display area:61×33 mm,white controllable backlight,adjustable contrast.

Character display:4 lines,12/16 characters per line(depending on the selected character set).

Application Fields

PP836A 3BSE042237R2 touch screen module is suitable for various industrial automation and control system application scenarios,such as manufacturing,chemical,electric power,building automation and other fields,and is used to realize the operation and maintenance of human-computer interaction and automatic control systems.
