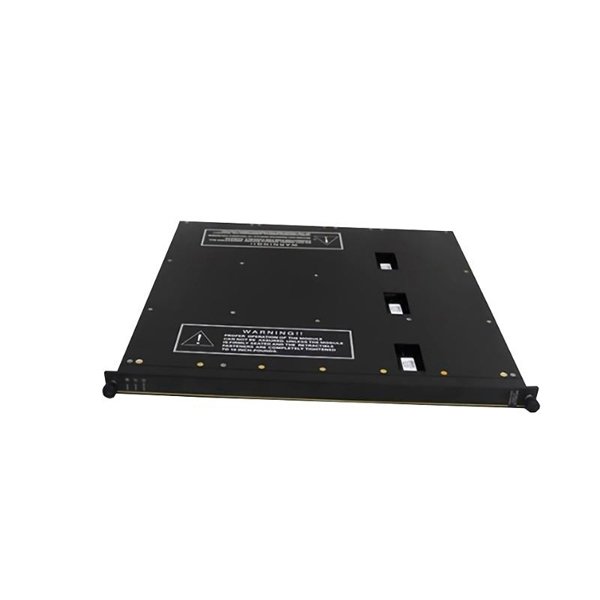

Triconex 4119A Analog Input Module Product Overview

the Triconex 4119A Analog Input Module stands out as a critical component. Designed for use in Triconex Safety Instrumented Systems (SIS), this module ensures accurate and reliable data acquisition, even in the most demanding environments. With 32 analog input channels, advanced signal processing, and fault-tolerant design, the 4119A module is a cornerstone of modern industrial automation.

Key Features of the Triconex 4119A Module

The Triconex 4119A is packed with features that make it a reliable choice for safety-critical applications:

• 32 Analog Input Channels: Each channel can handle 0-5V signals with a ±6% variable voltage range.

• Triple Modular Redundancy (TMR): This fault-tolerant technology ensures data accuracy by using three independent processing paths and a median selection algorithm.

• High Resolution and Accuracy: With 12-bit resolution and an accuracy of less than 0.15% of the full scale, the module delivers precise measurements.

• Fast Input Update Rate: The module processes data at 55ms per channel, ensuring real-time responsiveness.

Advanced Signal Processing for Fault Tolerance

One of the standout features of the Triconex 4119A is its use of Triple Modular Redundancy (TMR) technology. Each input channel converts voltage signals into digital values using three independent analog-to-digital converters. The median value of the three outputs is selected, ensuring that a single fault on one channel does not compromise the integrity of the data. This design makes the module highly reliable, even in environments where equipment failures could have catastrophic consequences.

Robust Performance in Harsh Environments

The Triconex 4119A is built to withstand the rigors of industrial environments. Its high input resistance (30MΩ minimum) and power-off resistance (30KΩ typical) ensure stable performance, even in the presence of electrical noise or interference. Additionally, the module boasts a common mode rejection ratio (CMRR) of -80dB, effectively filtering out unwanted signals and ensuring accurate data acquisition. With a common mode range of -12V to +12V, the module can handle a wide range of input signals without distortion.

Applications and Benefits in Industrial Systems

The Triconex 4119A is widely used in industries where safety and reliability are paramount. Its applications include:

• Oil and Gas: Monitoring critical parameters such as pressure, temperature, and flow rates.

• Chemical Processing: Ensuring precise control of chemical reactions and processes.

• Power Generation: Safeguarding equipment and processes in power plants.

By providing accurate and reliable data, the 4119A module helps organizations minimize downtime, reduce risks, and maintain operational efficiency. Its fault-tolerant design ensures that even in the event of a failure, the system remains operational, preventing costly disruptions.

Conclusion

The Triconex 4119A Analog Input Module is a testament to the advancements in industrial automation and safety technology. With its 32 input channels, TMR technology, and robust performance, it is an indispensable tool for industries that demand the highest levels of reliability and precision. By integrating the 4119A module into their systems, organizations can enhance safety, improve efficiency, and build resilient operations capable of withstanding the challenges of modern industrial environments. Whether in oil and gas, chemical processing, or power generation, the Triconex 4119A is a trusted solution for ensuring safety and reliability.
