Allen-Bradley 1734-IE4C Product Overview

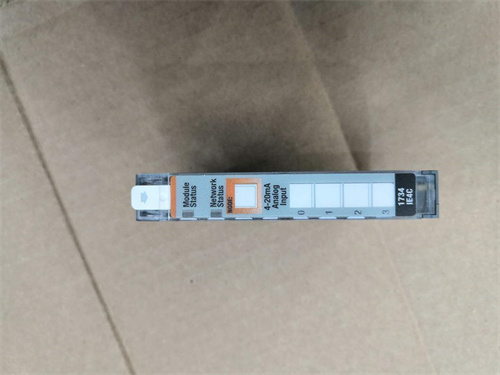

Allen-Bradley 1734-IE4C is a PLC(Programmable Logic Controller)module produced by Rockwell Automation,specifically a POINT I/O 4-point analog input module.The following is a detailed introduction to the module.

Product Overview

Manufacturer:Rockwell Automation

Brand:Allen-Bradley

Part Number/Catalog Number:1734-IE4C

Series:POINT I/O Series

Module Type:Analog Input Module

Main Features

Powerful:In addition to providing POINT Guard safety-level I/O,it also provides digital,analog,and special function I/O,with 1 to 8 points per module,depending on the configuration and model.

Easy to Apply:With comprehensive diagnostic and configurable functions,the POINT I/O module is very easy to apply and maintain.

Wide Range of Application:Standard I/O and safety I/O can be mixed in the same system to meet diverse control needs.

Stable and Reliable:Strictly tested and certified to ensure stable operation in various environments and applications.

Supports multiple input types:can receive 4-point analog input signals with input signal ranges of 4 to 20 mA and 0 to 20 mA.

Technical Specifications

Input items:2 single-ended,non-isolated voltage inputs.

Conversion type:Delta Sigma.

Key switch positions:3.

Enclosure type level:open(specific enclosure protection level may vary depending on the application environment).

Power consumption:0.75 watts(or 0.6 watts,depending on different materials)at 28.8 volts DC.

Heat dissipation:2.5 BTU per hour(or 2.0 BTU/hour,depending on different materials)at 28.8 volts DC.

Input resolution:16 bits,0.32μA/cnt at 0 to 21 mA.

Compatible heat sinks:including 1734-*734-TOPS,1734-TB and 1734-TBS.

Installation and grounding

Installation:The 1734-IE4C module can be installed before or after the base is fixed.During installation,follow the installation guide in the product manual and ensure proper connection and fixing.

Grounding:Ground to the rack ground through the DIN rail.To ensure proper grounding,use a chrome-plated yellow chrome steel DIN rail and fix the DIN rail to the mounting surface every 7.8 inches or 200 mm,and use the end fixtures correctly.

Application and Compatibility

Application scope:Widely used in CNC machinery,metallurgy,oil and gas,paper printing,textile printing and dyeing,machinery,electronic manufacturing,automobile manufacturing,tobacco,plastic machinery,power plants,water conservancy treatment/environmental protection,municipal engineering and other fields.

Compatibility:Supports rack-optimized connections between CompactLogix controllers or ControlLogix and discrete I/O modules in the same chassis.Through the backplane,it can also establish a direct connection between the Internet-enabled connection initiator and the input/output module.In addition,the 1734-IE4C can be used with DeviceNet and PROFIBUS adapters and ControlNet and EtherNet/IP adapters by using RSLogix 5000 software version 11 or later.
