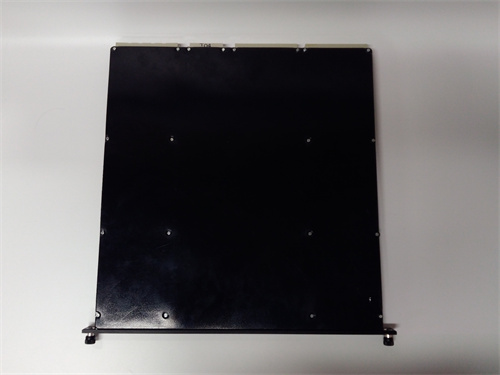

TRICONEX 3720 Detailed Introduction

TRICONEX 3720 is a product of the Triconex series,which is well-known for its high reliability and safety and is suitable for key areas such as petrochemicals and energy management.The following is a detailed introduction to TRICONEX 3720.

Product Features

High reliability and safety:Provides up to 99.999%safety availability to ensure stable operation of the system.

Modular design:With flexibility and scalability,it is easy for users to configure and expand according to actual needs.

Triple redundancy technology:Provides high fault tolerance to ensure that the system can continue to operate in any single fault situation.

Support for multiple communication protocols:supports multiple communication protocols such as Ethernet,RS-485,Modbus,Profibus,etc.,and has powerful data processing and transmission capabilities.

Multiple safety functions:supports safety functions such as emergency shutdown,fault diagnosis and recovery to ensure safe and stable operation of the system.

Technical specifications

Model:TRICONEX 3720

Series:Triconex

Number of channels:32 analog input points(also called 64 single-ended input points)

Input signal:differential 0-5 volts or-5 to+5 volts

Resolution:12 bits or 14 bits(programmable)

Sampling rate:10 milliseconds

Ambient temperature:-20℃to+60℃(also called-20℃to+120℃,which may depend on the specific application scenario and configuration)

Dimensions:The dimensions of different models may vary,for example,some models are 482mm x 366mm x 229mm

Electrical parameters:working voltage 10~30VDC,load current≤200mA,residual voltage≤2VDC,with output NPN/NO/NC,PNP/NO/NC,no-load current I0≤2.5mA(24V),switching frequency Hz≤500Hz

Mechanical parameters:repeatability≤3%,hysteresis range 1~20%,connection method uses 2-meter silicone Teflon cable,the number of cable cores is 3 wires(brown+blue-black out),the shell material is brass nickel-plated,the shell diameter is M18,and the shell length is 50mm

Application field

TRICONEX 3720 is widely used in petroleum,chemical,electric power,metallurgy and other industries to control key processes and ensure the stable operation of equipment and systems.Specific application scenarios include

Industrial automation:used to monitor and control factory equipment,production processes and manufacturing automation systems.

Safety system:In industrial environments,it is used to implement industrial safety systems,including emergency shutdown,fire detection,gas detection,etc.to ensure the safety of workers.

Power distribution:In power distribution systems,it is used to monitor and control grid equipment and power distribution processes.

Chemical industry:In chemical plants,it is used to monitor and control chemical processes to ensure product quality and process safety.

Pharmaceutical industry:In pharmaceutical production,it is used to monitor and control production lines and drug manufacturing processes.

Manufacturing:It is used to control manufacturing automation systems,including robots,assembly lines,and production equipment.
