GE DS200FGPAG1A Product Overview

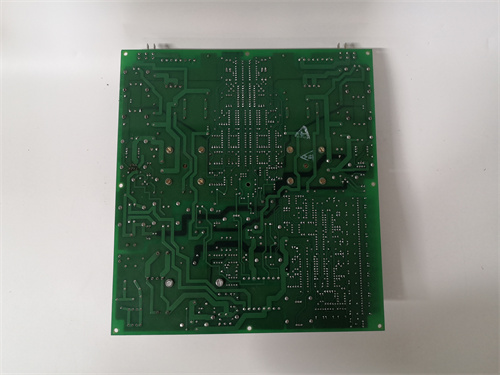

GE DS200FGPAG1A is a high performance gate pulse amplifier board produced by General Electric(GE).The following is a detailed introduction to the product.

Basic Information

Brand:GE(General Electric)

Specification model:DS200FGPAG1A

Product Category:Gate Pulse Amplifier Board/Gate Pulse Amplifier Card

Technical Specifications

Input voltage range:There are many different opinions,one is 115~230 VAC(the range is allowed to be extended to 90~260 VAC),and another is 12~48 VDC.

Output voltage range:5 VDC(when input voltage range is 12~48 VDC)

Output current:Maximum 10A(when input voltage range is 12~48 VDC)

Operating frequency range:5060 Hz(extended range allowed to 4763 Hz)

Efficiency:greater than 90%(when input voltage range is 12~48 VDC)

Dimensions:170mm x 105mm x 32mm

Weight:Approx.120g

Operating temperature:-20°C to+50°C

Storage temperature:-40°C to+70°C

Ambient humidity:5%to 95%relative humidity(no condensation)

CPU:32-bit RISC processor

Features

High-precision amplification:Able to accurately amplify pulse signals to meet the stringent requirements for signal strength and quality in industrial systems.

Wide input voltage range:Supports a wider input voltage range,enabling it to work stably in different power supply environments.

Wide operating frequency range:can adapt to a variety of different industrial application scenarios.

Polarity protection:No polarity protection is required when AC power is supplied,simplifying the installation and configuration process.

Voltage/frequency out-of-normal range protection:When the operating voltage is lower than the normal range,the board design can ensure that the module will not be damaged,improving the reliability and stability of the equipment.

Power Failure Protection:In the event of a power failure,the board automatically switches to safe mode after more than 20 milliseconds to protect the system from potential damage.

Insurance measures:Use glass insurance,rated at 2.5 AT,connected to the input terminal to provide additional safety for the device.

SCR Status Monitoring:Accumulates battery voltage information from connected FHVAs and communicates the information to the LCI controller via an optical serial data link.

Switching Power Supply:Converts the received AC voltage into the DC voltage required for gating and status functions.

Gate Driver:It is used to provide gate power to one phase of the SCR bridge.

Application Scenarios

The GE DS200FGPAG1A gate pulse amplifier board is suitable for industrial systems that require precise control and monitoring,such as automated production lines,mechanical equipment,sensor networks,etc.By providing stable and reliable gate pulse amplification function,it can ensure efficient operation and precise control of industrial systems.
