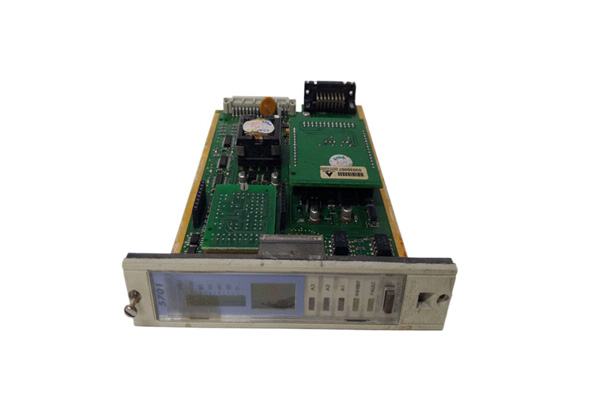

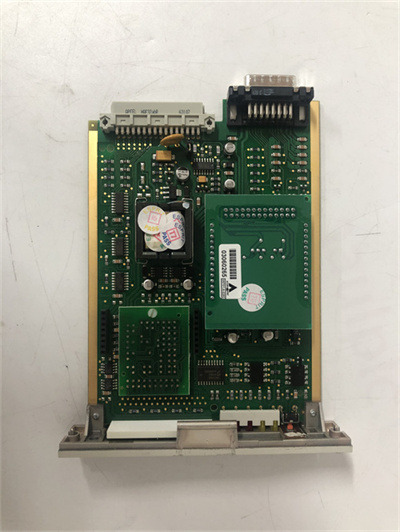

Honeywell 05701-A-0301 Detailed Information

Honeywell 05701-A-0301 is a single-channel control card.The following is a detailed introduction to it.

Basic information

Manufacturer:Honeywell

Product number:05701-A-0301

Product type:single-channel control card(4-20mA)

Product features

Single-channel design:This control card focuses on controlling or monitoring a specific parameter or process,such as temperature,pressure,flow,etc.,ensuring the focus and accuracy of control.

Real-time control and data feedback:Provide real-time control and data feedback functions to ensure that the system can respond quickly to various changes and improve the stability and reliability of the system.

Communication interface:It has a communication interface,which can exchange data with other devices and systems,supports standard communication protocols,and facilitates system integration and data sharing.

Programmability:Its behavior can be configured and controlled through programming to meet different application requirements,providing flexibility and scalability.

Safety function:It has safety functions for monitoring and managing dangerous situations,ensuring the safe operation of the system,and improving the safety of the system.

Technical specifications

Display:Four-part LCD analog display(25 segments),digital display four characters,information display four characters.

Icon section:Includes icons such as power on/card selection.

LED:Contains A1,A2,A3 gas alarms,as well as fault and inhibition indicators.

Button:Includes alarm reset/card selection button.

Alarm set point resolution:1%fsd step.

Power consumption:Catalytic typical value is 3.75W(including catalytic sensor),4-20mA typical value is 3.25 watts.

DC power supply:18V to 32V DC.

Electronic drift:less than 2%/6 months.

Dimensions:17 cm long,2.5 cm wide,11.2 cm high.

Weight:0.165 kg(shipping weight is 1.5 kg).

Application areas

Industrial automation:Used in automation systems on industrial production lines to ensure the normal operation of equipment and the stability of production processes.

Building automation:used to control building systems such as HVAC,lighting and security systems to improve energy efficiency and comfort.

Energy management:used to monitor and control energy equipment to optimize energy consumption and improve efficiency.

Environmental monitoring:used in environmental monitoring systems to monitor atmospheric conditions,water quality and other environmental parameters to ensure safety and production efficiency.
