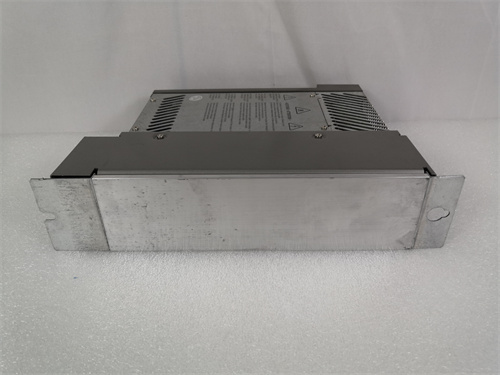

ELAU MC-4/11/22/400 Detailed Introduction

ELAU MC-4/11/22/400 servo drive is designed for industrial automation applications to control the speed and position of servo motors.It uses advanced vector control technology to provide high-precision,high-efficiency and high-reliability control performance.

Technical Specifications

Model:MC-4/11/22/400(4,11,22 represent models of different power)

Input voltage:AC 380V(-10%)to 480V(+10%),also known as 400VAC,frequency 50/60Hz.

Control voltage/power:DC 24V(-15%/+25%)/1A,also known as 24V voltage,100-400A current.

Rated power:4kW for MC-4,11kW for MC-11,and 22kW for MC-22.

Output current:11A for MC-4,22A for MC-11,and 44A for MC-22.

Output type:two-wire

Rated working distance:3mm

Dimensions:210mm×80mm×270mm for MC-4/11,and 210mm×100mm×270mm for MC-22.

Weight:The packaging dimensions are 18.0cm in height,34.0cm in width,45.5cm in length,and 7.427kg in weight;some say 2KG.

Protection level:IP65,suitable for harsh industrial environments.

Features

High precision and high stability:High-resolution encoders are used to achieve precise position control,suitable for various automation equipment requiring high precision and high dynamic response.

High performance:With low mass moment of inertia,fast response can be achieved and production efficiency can be improved.

Multiple applications:It can be used in industrial automation equipment such as CNC machine tools,packaging machinery,textile machinery,printing machinery,etc.It can also be used in many fields such as food and beverage manufacturing,electronic manufacturing,and medical equipment manufacturing.

Reliable performance:It uses high-voltage technology and advanced magnetic control technology to ensure the reliable performance of the driver.
