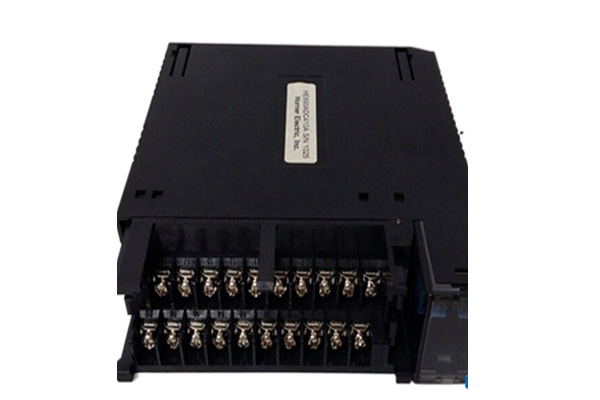

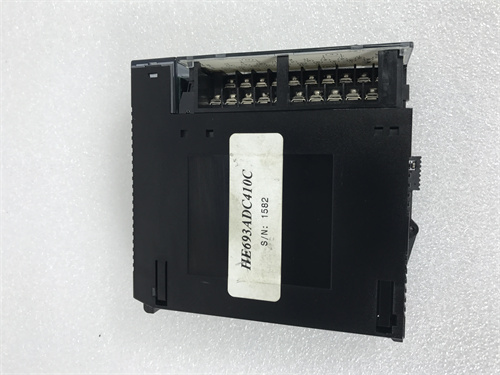

GE HE693ADC410 Product Introduction

HE693ADC410 is a high-precision analog input module produced by General Electric(GE),mainly used in industrial automation and control systems.The following is a detailed introduction to HE693ADC410.

Basic information

Brand:GE(General Electric)

Model:HE693ADC410

Type:Analog input module

Technical specifications

Number of channels:4 analog input channels

Resolution:14 bits(other resolutions related to A/D conversion may be mentioned in some cases,but the main resolution is still 14 bits)

Input range:usually supports±10V voltage input signals(may also support other ranges such as 0-5V,0-10V,but±10V is a common specification)

Common mode range:usually 1500VAC(effective value),some models may have different common mode voltage isolation capabilities

Channel isolation:channel-to-channel and channel-to-ground isolation

Update rate:45 channels/second(or may vary depending on specific configuration and application requirements)

Operating voltage:usually 24VDC(but there may also be other voltage specifications,please refer to the actual product for details)

Input impedance:1 megohm

Analog filtering:1KHz,3 Bessel filters

Digital filtering:supports 1-128 Sampling/updating digital filter

Communication capability:supports multiple digital communication protocols to communicate with other devices,monitoring systems or upper control systems

Functional features

High precision:provides 14-bit resolution analog input to ensure high-precision data acquisition

Multi-channel:has 4 analog input channels,which can collect multiple analog signals at the same time

Isolation performance:has channel-to-channel and channel-to-ground isolation capabilities to improve the anti-interference and safety of the system

Programmability:users can program and customize the module according to specific application requirements to achieve flexible control strategies

Integration and compatibility:can be seamlessly integrated with other GE products and solutions to form a unified automation platform,and has good compatibility with equipment and systems of other manufacturers

High performance and high reliability:adopts high-performance hardware and software design to ensure stable operation and efficient control in industrial environments

Application scenarios

The HE693ADC410 analog input module is commonly used in various application scenarios in industrial automation and control systems,such as temperature,pressure,flow and other industrial process monitoring and control.It can receive analog input signals from sensors or other devices and convert them into digital signals for PLC(programmable logic controller)processing,thereby achieving precise control of industrial processes.
