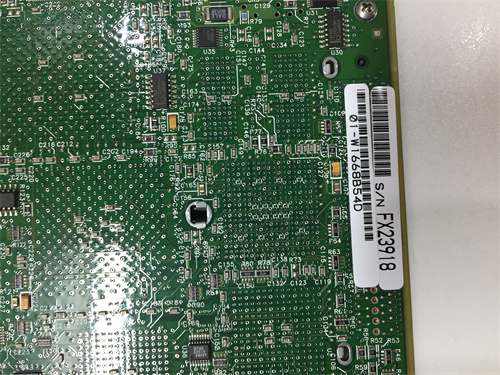

Motorola MVME2700-761 Product Introduction

The Motorola MVME2700-761 is based on Motorola’s PowerPlus VME architecture and PowerPC microprocessor design,and is a member of the VME processor module series.The module is known for its scalable high-performance computing and PMC(PCI Mezzanine Card)expansion flexibility,and is suitable for various occasions requiring high-performance computing and real-time processing.

Main features

Processor:Motorola MVME2700-761 is equipped with a PowerPC 750 32-bit microprocessor,equipped with 32KB/32KB L1 cache and 1MB back-end L2 cache,ensuring excellent computing performance and response speed.

Memory:The module supports the use of RAM200 memory expansion modules,and the memory can be expanded to 16MB to 256MB of ECC DRAM.At the same time,it also provides 8MB of on-board flash memory and 1MB of slot-type flash memory to meet the storage capacity requirements of different applications.

Interfaces and expansion

The Motorola MVME2700-761 has a 64-bit PCI mezzanine connector that supports PCI expansion carriers such as the Motorola PMCspan.

Provides 2 or 3 asynchronous serial ports,and 1 or 2 synchronous/asynchronous serial ports for serial communication with other devices.

Ethernet transceiver interface with 32-bit PCI local bus DMA supports network communication.

Provides 8-bit or 16-bit fast SCSI-2 bus interface,as well as parallel,floppy disk,keyboard and mouse interfaces,enhancing the expandability and compatibility of the device.

Modular design:The Motorola MVME2700-761 adopts a modular memory design,and the mezzanine array supports additional DRAM from 16MB to 256MB.The RAM200 expansion module allows field upgrades of memory capacity without the need for additional VME slots,improving the flexibility and maintainability of the device.

Self-test and diagnosis:The module is equipped with an onboard debug monitor with self-test diagnostics that can automatically detect and report faults during device startup and operation,improving the reliability and maintainability of the device.

Application Fields

The Motorola MVME2700-761 is designed to meet the needs of military,aerospace,industrial automation and medical fields,and is suitable for various high-performance computing and real-time processing application scenarios.Its powerful computing power and flexible scalability make it an indispensable key component in these fields.
