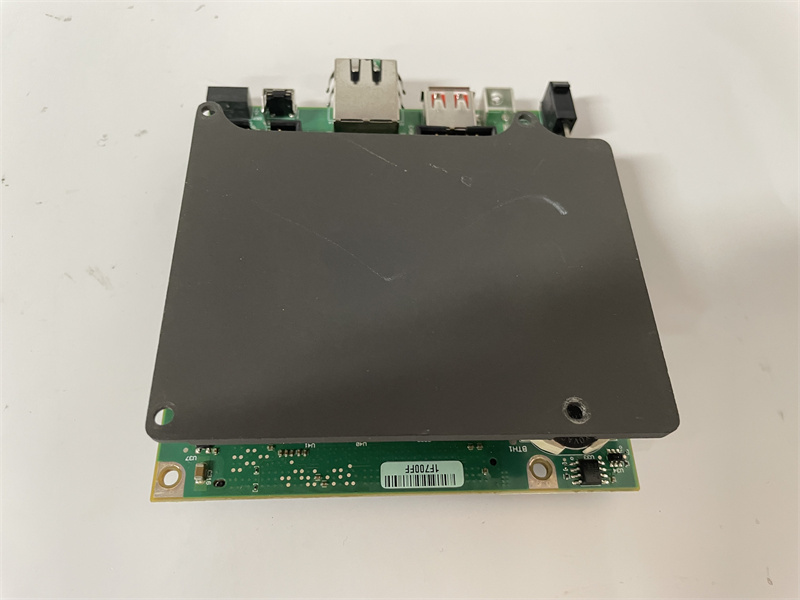

NI SBRIO-9607 Detailed Introduction

NI SBRIO-9607 integrates a real-time processor,a user-reconfigurable FPGA(Field-Programmable Gate Array),and I/O on a printed circuit board(PCB),making it a compact and efficient solution.It is particularly suitable for high-volume OEM applications that require flexibility,reliability,and high performance,such as data acquisition,signal processing,and embedded control.

Core Components and Features

Embedded Processor

NI SBRIO-9607 is equipped with a high-performance embedded processor,typically using the ARM Cortex-A9 architecture.

The processor is used to run applications,implement control algorithms,and process data.

FPGA

The device contains an FPGA that can be reconfigured to adapt to different real-time control tasks and data processing requirements.

The programmability of the FPGA enables it to provide low-latency and high-throughput data processing capabilities.

I/O interface:NI SBRIO-9607 provides a rich set of I/O interfaces,including digital input/output(DIO),analog input/output(AI/AO),counter/timer,and communication interfaces such as UART,SPI,and Ethernet.These interfaces are used to connect with external sensors,actuators,and other devices.Real-time operating system:The embedded system usually runs the NI Linux Real-Time operating system based on the real-time operating system(RTOS).This ensures high-precision and reliable real-time control performance.

Functions and features

Programmability:Supports programmable functions,allowing users to customize control logic and signal processing algorithms by using high-level programming languages​​​​such as LabVIEW,C/C++or FPGA programming languages.High-speed data transmission:Through the RIO mezzanine card(RMC)connector,NI SBRIO-9607 can achieve high-speed,high-bandwidth data transmission.This makes it particularly suitable for application scenarios that require a large amount of data transmission and processing.Wide temperature range:Designed to operate in a temperature range of-40°C to+85°C.This enables it to operate stably in a variety of harsh industrial environments.Real-time performance management

NI SBRIO-9607 is able to achieve real-time performance management by running specific applications(such as Indusoft web research applications).

This includes acquiring data from various sources(such as PLCS and enterprise resource planning systems)and then pushing data to thin clients through a web browser.

Compatibility and integration

It can interact with almost all OPC and Microsoft applications(such as office,relational databases,historians,etc.).

This makes it easy to integrate with existing equipment and systems.

Application areas

NI SBRIO-9607 is widely used in the following fields due to its high performance,high reliability and flexibility

Industrial automation:used for production line control,process flow monitoring and other systems.

Energy management:supports data acquisition and monitoring in smart grids,wind power generation,solar energy and other fields.

Transportation:used for data acquisition and transmission in train control systems,intelligent transportation systems and other fields.

Scientific research experiments:supports data acquisition and processing in laboratory research,test and measurement and other fields.

Technical specifications

Number of digital I/O channels:32,configurable as 16 bidirectional channels.

Analog input channels:8 single-ended or 4 differential.

Analog output channels:2.

Sampling rate:up to 250 kS/s(analog input/output).

Resolution:16 bits(analog input/output).

Synchronization:supports precise synchronization between multiple SBRIO modules.

Interface:PXI interface,compatible with PXI and CompactRIO chassis.

In summary,NI SBRIO-9607 is a comprehensive and high-performance embedded system module suitable for a variety of industrial automation and control system applications that require high-precision,fast data acquisition and processing.
