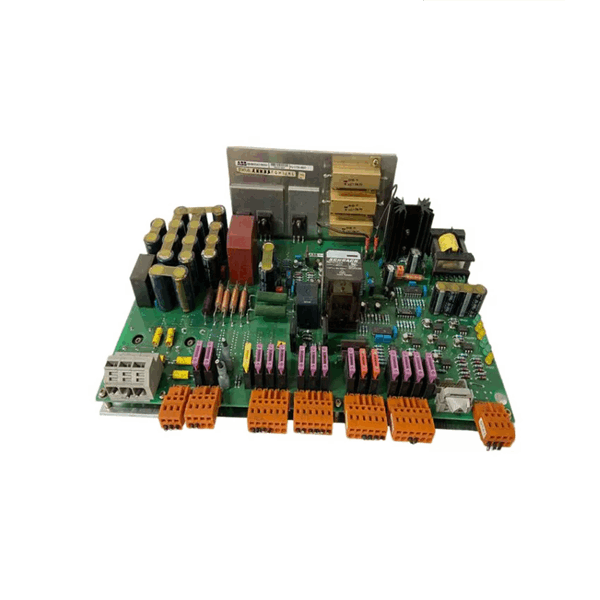

ABB KUC720AE01 Output Module Technical Specifications

The ABB KUC720AE01 output module is an important functional unit in the UNITOL static excitation system, mainly used to convert the adjustment signal of the excitation controller into power output, thereby directly driving the excitation current to supply the generator rotor. It is usually used in conjunction with the KUC711AE101 excitation controller to form a complete automatic voltage regulation (AVR) and excitation system.

This module belongs to high reliability power electronic units, integrating power output circuits, protection circuits, and status monitoring. It is a key component for achieving generator voltage stability and reactive power support.

Technical parameters (typical)

Model: KUC720AE01

Order number:

3BHB003431R0101

3BHB000652R0101

Product Type: Excitation System Output Module

Main functions:

Convert the regulation control signal into excitation current output

Provide excitation power channel and necessary protection functions

Electrical parameters (typical range):

Output current: tens of amperes to hundreds of amperes (depending on configuration)

Output voltage: Suitable for excitation system DC bus voltage (such as 400V/600V DC)

Signal input: PWM or adjustment command from KUC711AE101 controller

Communication interface: supports system bus connection with control modules

Protection function:

Overcurrent and short circuit protection

over-temperature protection

Abnormal detection of excitation circuit

Structure: Modular design, insertable into rack

Cooling method: air cooling/natural cooling (depending on system configuration)

Working environment:

Temperature: 0~+55 ℃

Humidity: 5%~95%, no condensation
