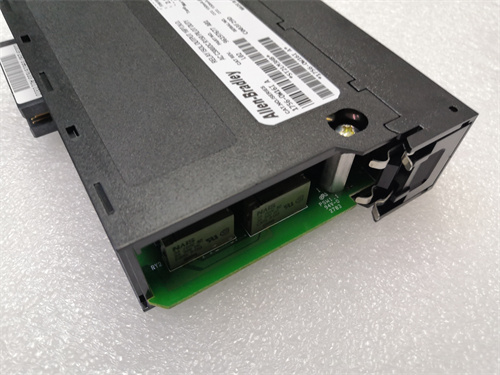

A-B 1756-OW16I Product Overvie

A-B 1756-OW16I belongs to the ControlLogix series module is a digital relay output module.It is widely used in various control systems,such as production line automation,mechanical equipment control,process flow management,etc.,providing efficient and reliable solutions for industrial automation.

Technical Specifications

Output Contacts:It has 16 independent normally open(N.O.)contacts,each with isolation protection.

Voltage Range:It supports operation within the voltage range of 5125VDC and 10240VAC.

Output Capacity:The module provides one analog input and one analog output,as well as two high-speed counters.

Power Compatibility

Output 1A current at 5~30V DC.

0.5A at 48V DC.

0.22A at 125V DC.

1.5A at 120V AC.

0.75A at 240V AC.

Heat dissipation and power consumption:At 5.1V DC and 24V DC,the module draws 150mA from the backplane,and the total backplane power consumption is 4.4 watts.

Switching frequency:The best switching frequency is one operation every three seconds,and the average rebound time is 1.2 milliseconds.

Output delay:The best output delay time for each output channel is 10 milliseconds.

Compatibility:Supports scheduled output and can be configured to maintain the previous state(i.e.on or off,the default setting is off)in the event of a fault.

Environmental adaptability

The operating temperature range is 0~60 degrees Celsius.

The humidity range is 5~95%,and no condensation will occur.

Product features

Powerful processing capability:Using advanced microprocessor technology,it can achieve high-speed and precise calculation and control,respond to various control needs in real time,and ensure the stability and continuity of the production process.

High flexibility and scalability:Users can implement various complex control logic and functions through programming and configuration according to actual needs.

Multiple communication protocols and interfaces:Supports multiple communication protocols,such as MODBUS,DF1 slave,BATCH network,J1939,Cancap,etc.,and has communication options such as Ethernet and cellular,which is convenient for integration with other devices and systems to achieve data sharing and interaction.

Rich input/output module options:Users can choose different module types according to their needs to meet different signal types and control requirements,improve the versatility and applicability of the equipment,and reduce the user’s procurement and maintenance costs.

Security:Multiple security protection measures,such as password protection and authority management,are adopted to ensure the safe operation of the equipment and the safe storage of data.At the same time,it supports remote monitoring and fault diagnosis functions,which is convenient for users to discover and solve potential problems in time.

Application field

A-B 1756-OW16I digital relay output module is suitable for industrial automation control systems that require high reliability and high flexibility.It can meet various complex control requirements,improve production efficiency and quality,and reduce maintenance costs.Whether it is a new automation project or an upgrade of an existing system,it is an excellent choice worth considering.

In summary,the A-B 1756-OW16I is an industrial automation product with excellent performance and comprehensive functions.For more information,it is recommended to consult the official documents released by Allen‑Bradley or contact its technical support department.
