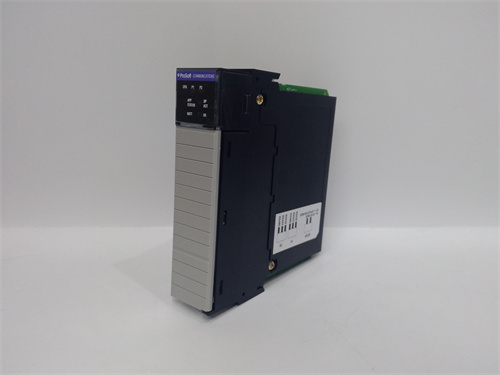

PROSOFT MVI56-LTQ Detailed Introduction

PROSOFT MVI56-LTQ is a communication module designed for industrial automation and control systems.The following is a detailed introduction to the module.

Main functions

The main function of the PROSOFT MVI56-LTQ module is to serve as an interface between the Limitorque valve network and the control system.It allows the Rockwell Automation ControlLogix processor to easily connect to Limitorque Valve Actuators and other Limitorque protocol compatible devices.This feature makes the module have a wide range of application prospects in industrial automation systems and can meet the communication needs of various complex control systems.

Technical features

High compatibility and flexibility:The PROSOFT MVI56-LTQ module supports multiple communication protocols and can communicate with devices and systems of different manufacturers and models to achieve data sharing and transmission of control instructions.This compatibility allows users to freely choose devices and systems according to their needs and build flexible and diverse industrial automation solutions.

Excellent stability and reliability:The module uses high-quality materials and manufacturing processes,and can operate stably for a long time in harsh industrial environments.At the same time,it also has fault detection and self-recovery functions,which can promptly alarm and try to automatically recover when a fault occurs,ensuring the continuity and stability of the control system.

Efficient data transmission and processing:The PROSOFT MVI56-LTQ module uses advanced communication technology and algorithms to achieve high-speed and efficient data transmission and processing.Whether it is real-time acquisition of large amounts of data or rapid response to control instructions,the module can perform well and meet the high requirements of industrial automation systems for communication performance.

Easy to use and maintain:The module provides an intuitive user interface and a friendly operating experience,allowing users to easily perform configuration,debugging and maintenance work.At the same time,it also supports remote monitoring and management functions.Users can remotely access and control the module through the network to achieve remote fault diagnosis and troubleshooting.

Application Industry

The PROSOFT MVI56-LTQ module is widely used in aerospace,chemical,food/beverage,industrial gas,oil and gas production,exploration,processing and refining,mining,pharmaceuticals,power,pulp and paper,and water/wastewater treatment industries.In these industries,the module can effectively realize communication and data transmission between valve actuators and control systems,and improve the efficiency and reliability of industrial automation systems.

Product Specifications and Configuration

Port Configuration:The PROSOFT MVI56-LTQ module uses two ports to implement Limitorque’s Port A/B polling scheme and supports RS-232 or RS-485 communications(jumper selectable).

Software Configuration:The module’s software configuration is from processor ladder logic,with a baud rate range of 1200 to 38400(or higher to 115200)and supports multiple network polling schemes and active slave table configurations.

Command Support:The PROSOFT MVI56-LTQ module supports a variety of commands,including continuous polling,reading valve position,status and fault registers,digital output and digital input registers,and communication error codes and communication counters.In addition,it also supports commands such as opening,stopping,closing valves,and starting and terminating network ESD.
