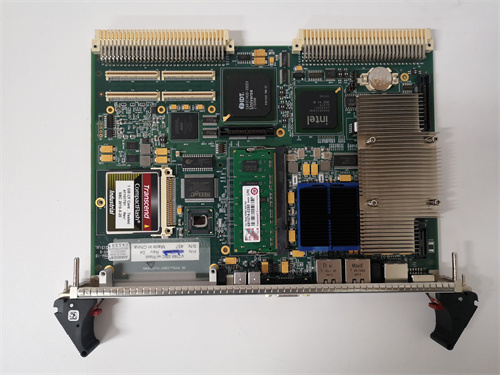

GE V7768-320001 350-9301007768-320001 A2 Product Details

GE V7768-320001 350-9301007768-320001 A2 is a high-performance product designed for industrial automation and embedded systems.The following is a detailed introduction.

Basic attributes

Brand:GE(General Electric)

Model:V7768-320001 350-9301007768-320001 A2

Series:GE VME series or Rx7i PAC system

Imported:Yes

Hardware Specifications

Processor:Based on the VME bus standard,it integrates an Intel Core 2 Duo processor with a maximum speed of 2.16 GHz and a 4 Mbyte L2 cache.

Memory:Supports expansion up to 2 GB DDR2 SDRAM via a single SODIMM.

Storage:Supports up to 8 GB of bootable CompactFlash.

I/O interfaces:Dual Gigabit Ethernet,two SATA interfaces,four USB 2.0 ports,keyboard/mouse/SVGA interfaces on the front panel,and PMC expansion sites with PCI-X support.

Size:The sizes given in different materials are different,one is 25×32×23(the unit may be millimeters or there may be errors),and the other is 233mm×112mm×23mm.

Weight:There are also differences,one is 0.13 kg and the other is about 350 grams(may be related to different models or configurations).

Number of connectors:5

Bus voltage current:6 amps

Working temperature:Wide range,-40°C to 85°C(some data indicate 0 to 85°C,but-40°C to 85°C is more widespread).

Features

High-performance computing:Provides powerful computing and data processing capabilities,suitable for a variety of complex industrial automation and embedded system applications.

Modular design:modular,flexible,reliable,easy to integrate and maintain.

Rich I/O interfaces:Supports multiple communication protocols and interface standards to facilitate connection and communication with other devices and systems.

High scalability:Supports adding functions through PMC expansion sites and other methods to meet different application requirements.

Application fields

Industrial automation:control industrial robots,production lines,automation equipment,etc.

Data acquisition:used to collect industrial field data,such as sensor data,instrument data,etc.

Image processing:Processing industrial image data,such as detecting product defects,identifying objects,etc.

Test and measurement:Used to test and measure the performance of industrial equipment to ensure that the equipment operates in the best condition.
