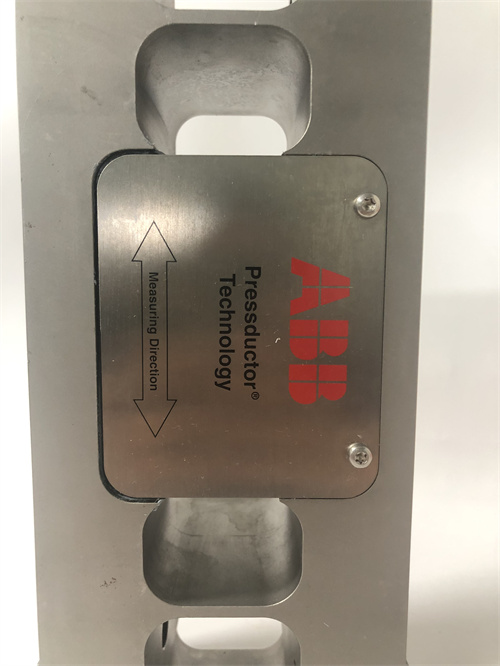

ABB PFTL 101B 2.0KN Product Overview

The PFTL 101B 2.0KN head is designed based on ABB’s famous Pressductor®magnetostrictive effect principle,which states that the magnetic properties of steel will be affected by mechanical forces.This head is very suitable for applications with low tension,heavy rolls and high operating speeds,especially in the metallurgical industry.

Technical Features

High-precision measurement:The advanced magnetostrictive effect principle can accurately measure the tension of the strip.

Rugged and durable:ABB’s unique press-magnetic®technology makes the PFTL 101B 2.0KN head very rugged and able to withstand a variety of working conditions.

Easy to install:It provides standard rail installation and closed installation(IP65)suitable for more harsh environments,which is convenient for users to choose according to actual needs.

Multi-function display:Equipped with a 2×16-bit digital display,it can display the sum signal,difference signal or the signal of each head,which is convenient for users to monitor and debug.

Easy to debug and maintain:Control unit settings through step-by-step menus,pre-set standard measurement modes,easy-to-configure analog/digital input/output ports,support for self-diagnostic test systems,including sensor tests,convenient for users to debug and maintain.

Application fields

PFTL 101B 2.0KN pressure head is widely used in multiple industrial fields,including but not limited to

Printing industry:Control the tension of paper or printed materials throughout the printing process to ensure printing quality and reduce problems such as paste flanging.

Packaging industry:Maintain stable tension of packaging materials(such as packaging film,paper,etc.)during the packaging process to ensure the firmness and appearance of the packaging.

Textile industry:Adjust the tension of yarn or fabric to ensure consistent tension throughout the textile process,improve production efficiency and product quality.

Metal processing industry:Control the tension of metal strips to ensure the stability of metal strips during cutting,forming or drawing.

Rubber and plastic processing:Maintain the tension of materials during extrusion,stretching or film production to ensure the quality of the finished product.

Cable manufacturing:Control the tension of cable lines to ensure the consistency and quality of cables.

Product Specifications(Part)

Model:PFTL 101B 2.0KN

Category:Lateral measurement magnetic pressure head

Drive current range:May vary depending on the specific application,but the drive current range of general smart bus stepper drivers is between 0.1A and 8A.

Power supply voltage:Generally 100~240V AC,but may vary depending on product version or application scenario.
