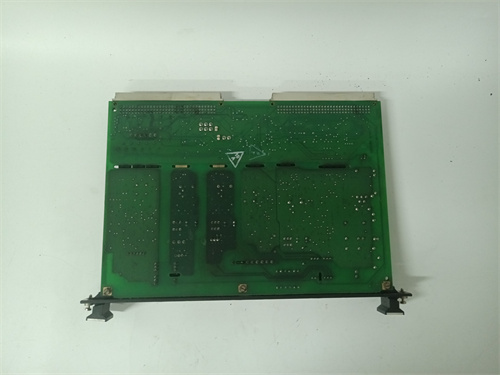

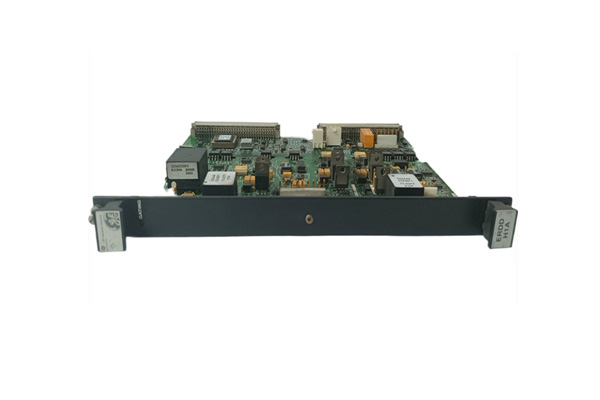

GE IS200ERDDH1A Detailed Information

The IS200ERDDH1A module is designed for industrial automation systems and has fast and accurate signal processing capabilities to meet the needs of various industrial automation applications.It is widely used in manufacturing,energy,transportation and other fields,providing reliable support for production line automation control,equipment monitoring,power system switch control,signal acquisition and rail transit signal control.

Main Features

High-precision input detection

It has high-precision signal detection capabilities to ensure the accuracy and reliability of input signals.

Fast response output

It can quickly respond to output instructions to meet high-speed control requirements.

Flexible communication interface

Supports multiple mainstream communication protocols such as ProfiBus,EtherCAT,Modbus,etc.,which is convenient for connection and data exchange with other system components.

Wide temperature operating range

It can operate stably in the operating temperature range of-20℃to 60℃,and adapt to various industrial environments.

Modular design

The modular design is adopted to facilitate installation and maintenance and reduce system costs.At the same time,the modular design also improves the scalability and flexibility of the system.

Technical parameters

Basic specifications

Model:IS200ERDDH1A

Manufacturer:General Electric(GE)

Input parameters

Number of input points:16 points

Input voltage:24V DC

Input current:maximum 7mA

Response time:fastest 1ms

Output parameters

Number of output points:16 points

Output voltage:24V DC

Output current:maximum 0.5A/point

Load capacity:resistive load,inductive load

Communication parameters

Supported protocols:ProfiBus,EtherCAT,Modbus,etc.

Communication rate:12Mbps(the specific rate may vary depending on the actual application scenario and configuration)

Environmental adaptability

Operating temperature:-20℃to 60℃

Storage temperature:-40℃to 85℃

Relative humidity:5%to 95%(no condensation)

Mechanical characteristics

Dimensions:about 200mm×100mm×50mm(the specific dimensions may vary depending on the production batch and process)

Weight:about 0.5kg

Installation method:DIN rail installation

Application scenarios

IS200ERDDH1A module is suitable for a variety of industrial automation application scenarios,including but not limited to

Manufacturing

Used in production line automation control,equipment monitoring and other scenarios to improve production efficiency and product quality.

Energy field

Used in power system switch control,signal acquisition and other scenarios to ensure the stable operation and safety and reliability of the power system.

Transportation

Applicable to scenarios such as rail transit signal control and automated warehousing systems to improve the efficiency and safety of transportation
