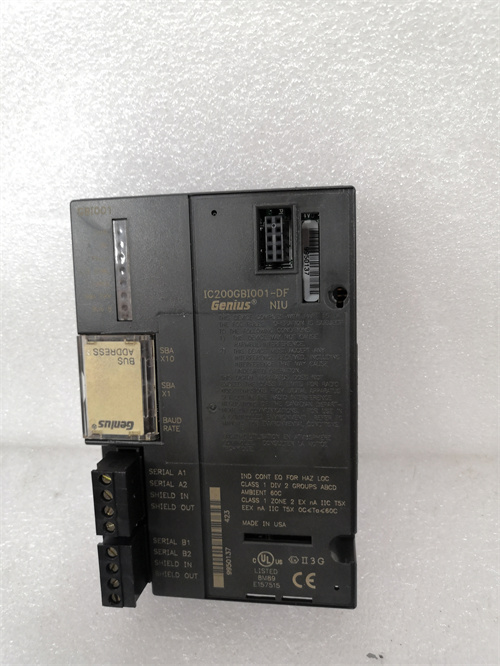

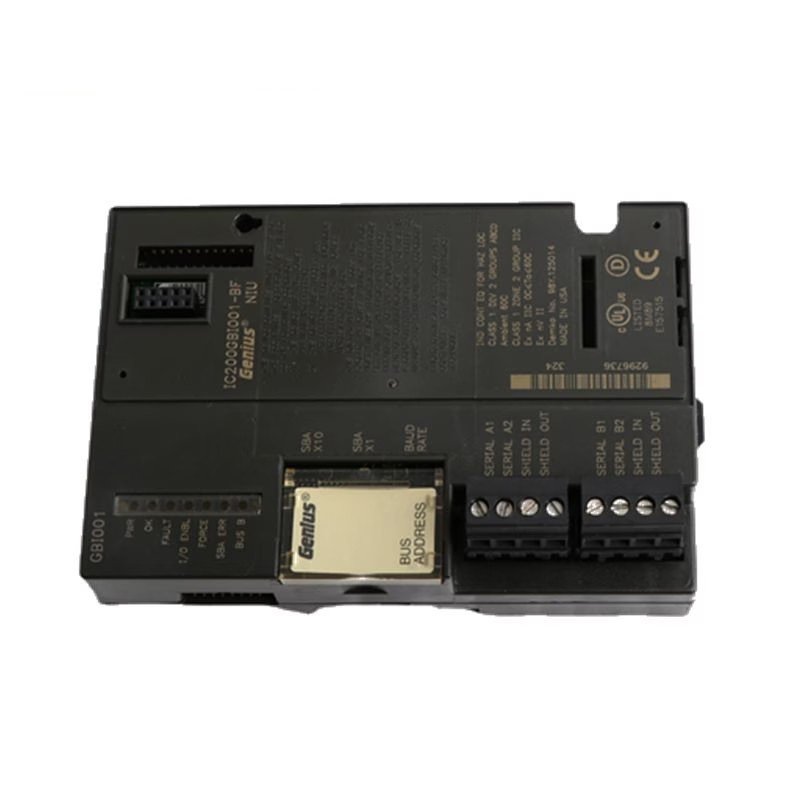

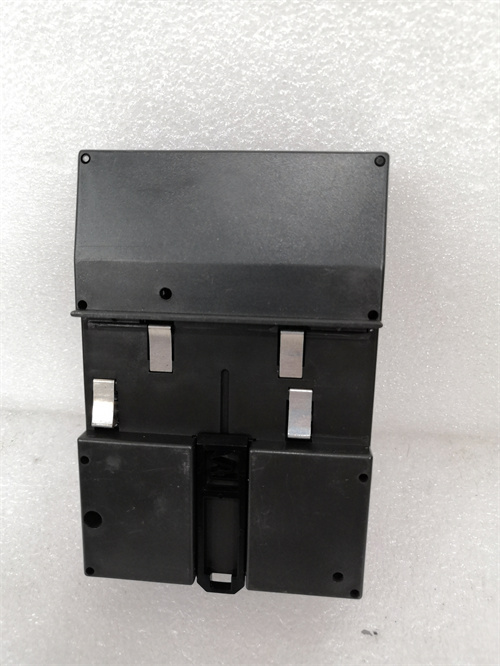

GE IC200GBI001 Product Details

GE IC200GBI001 is a VersaMax communication module manufactured by General Electric(GE).The following is a detailed introduction to the product.

Basic features

Brand and model:GE IC200GBI001

Type:VersaMax communication module,which can also be regarded as a Genius network interface unit(NIU)

Structural form:module structure

Specifications:66mm

Weight:2kg

Power consumption:250mA 4VDC and 10mA 3.3VDC(also said to be 10mA 3.3V and 250mA 5V)

Firmware version:Updatable

Communication and network functions

Network interface:Dual Genius connection terminals,the upper terminal is used as the main Genius connection point,and the lower terminal is used as a redundant port

Transmission rate:Supports extended transmission speed of 153.6kbaud,and standard configurations include 153.6kbaud,76.8kbaud and 38.4kbaud

I/O capacity:Each rack can carry up to 8 I/O modules and support the installation of up to 8 racks,a total of 64 I/O modules.At the same time,it can accommodate up to 1024 discrete inputs,1024 discrete outputs,128 bytes of analog input memory and 128 bytes of analog output memory

Network scanning:can manage 128 bytes of network input and 128 bits of output per scan

Serial bus address:ranges from 0 to 31

Topology connection:designed for daisy chain topology connection,terminal resistors need to be installed at both ends of the communication cable,and the resistance value can be 75,100,120 or 150 ohms

Compatibility and Application

Compatible system:compatible with various controller systems,including 90-70 series PLC,PACSystem RX7i and PACSystem RX3i,etc.Requires the appropriate firmware version to be loaded into the controller and IC200GBI001 Genius network interface module

Application areas:Widely used in CNC machinery,metallurgy,oil and gas,paper printing,textile printing and dyeing,machinery,electronic manufacturing,automobile manufacturing,tobacco,plastic machinery,power plants,water conservancy treatment/environmental protection,municipal engineering and other industries

Other features

Fiber optic and shielded twisted pair support:Supports the use of fiber optic cables and shielded twisted pair(STP)cables

Removable connector:Provides removable connectors for easy installation and maintenance

Enhanced Diagnostic Mode(EDM):Operator diagnostic data can be obtained through EDM

Analog I/O support:Has 64 analog I/O points
