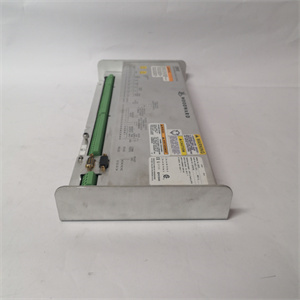

Woodward 2301E 8273-1011 Detailed Information

Woodward 2301E 8273-1011 is a microprocessor-based digital control module.Here is a detailed introduction to it.

Main Purpose

Mainly used for load sharing and speed control of generators driven by diesel or gas engines.

Functional Features

Engine Control:The module can monitor and adjust the operation of the engine to ensure its normal operation.

Digital Input/Output:Usually equipped with multiple digital input and output channels for connecting to sensors,actuators and other devices for signal acquisition and control operations.

Communication Interface:It has a variety of communication interfaces,such as serial ports(such as RS-232,RS-422,etc.),Ethernet,etc.,to exchange data and communicate with other system components and superior control systems.

Programmability:Allows users to write and load control programs according to specific application requirements,increasing the flexibility of use.

Real-time Monitoring:It can provide real-time data,as well as real-time monitoring and feedback of engine operating parameters.

Fault Detection and Alarm:It has fault detection function,which can monitor the status of the system and sensors,and trigger alarms when problems occur,so that maintenance measures can be taken in time.

Engine protection:Equipped with engine protection function,it can prevent the engine from running under abnormal or dangerous conditions and take necessary measures to protect the engine.

Data logging and historical data analysis:Support data logging function,which can record historical data for fault diagnosis and performance analysis.

Scalability:It is scalable,allowing users to add additional modules and channels to meet changing control needs.

Technical specifications

Input voltage:Usually 24VDC,but it may vary in the range of 18~36VDC according to application requirements.

Output voltage:420mA DC or 010VDC.

Operating temperature range:-40°C to 70°C(may reach 85°C in some cases).

Dimensions:There may be multiple size specifications,such as 96×48×100mm or 150×100×50mm,etc.(the specific size may vary depending on the product version or manufacturer).

Weight:About 0.15kg or 100g(the specific weight may vary depending on the product version or manufacturer).

Control Hardware

Including load sensors,actuator drivers,microprocessor speed sensors,etc.

Control Mode

Provides control in synchronous mode,descending mode or basic load mode,and supports soft load transfer.

Application Scenario

Due to its powerful functions and flexible configuration options,the Woodward 2301E 8273-1011 module is widely used in various occasions that require precise control of engine load and speed,such as power stations,ship power systems,industrial machinery,etc.
