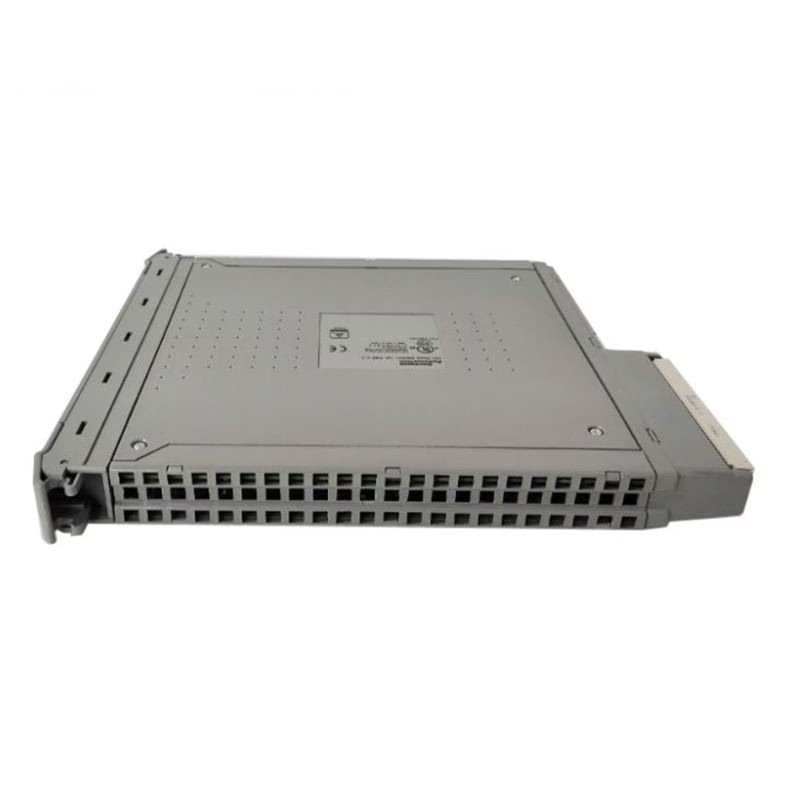

The ICS Triplex T8086 is a Trusted Triple Modular Redundancy (TMR) Analog Input Module designed for industrial automation systems. It guarantees high availability and data integrity, ensuring stable performance in critical applications.

Technical Specifications

• System Supply Voltage Range: 20-32 VDC
• Number of Inputs: 40 Channels
• Input Range: 0-10 V, ±10 V, 0-20 mA, 4-20 mA
• Resolution: 16-bit
• Input Impedance: Voltage Input: >1 MΩ, Current Input: 250 Ω
• Accuracy: ±0.1% of full-scale range
• Channel Isolation: 500 VDC (channel-to-system)
• Scan Time: <10 ms for all channels
• Operating Temperature: -5°C to 60°C (23°F to 140°F)
• Non-operating Temperature: -25°C to 70°C (-13°F to 158°F)
• Operating Humidity: 10-95% RH (non-condensing)
• Dimensions: 266mm (H) x 31mm (W) x 303mm (D)
• Weight: 1.149 kg (2.5 lbs)
