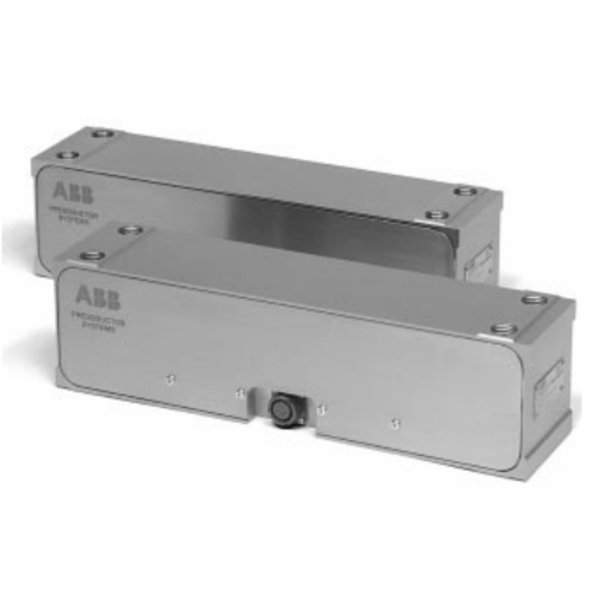

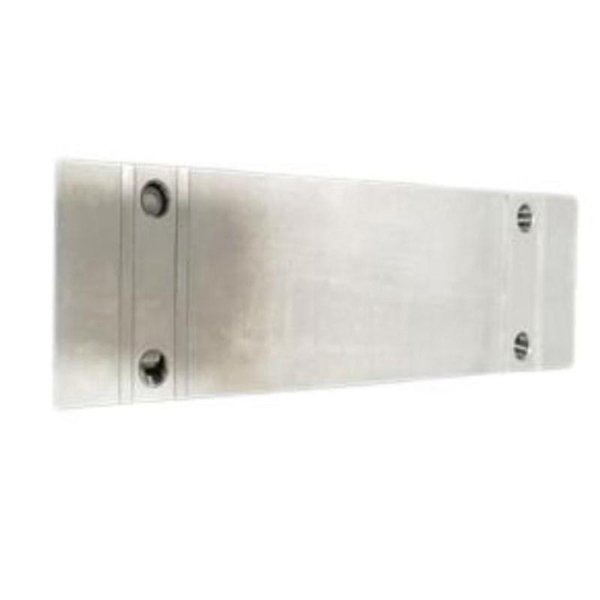

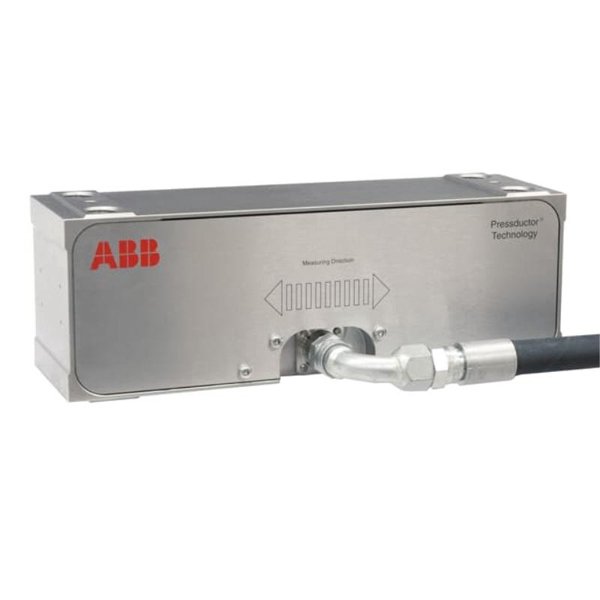

ABB PFTL211-CE Load Cells

The ABB PFTL211-CE Load Cell is a high-precision force transducer engineered for reliable and continuous tension measurement in demanding industrial processes. Designed specifically for applications requiring precise web tension control, the PFTL211-CE is part of ABB’s advanced force measurement product family, widely recognized for its stability, durability, and accuracy.

With its robust stainless steel construction, excellent signal stability, and resistance to harsh environments, the PFTL211-CE is trusted by industries such as metals, paper, plastics, converting, textiles, and other continuous production lines where maintaining consistent tension is critical for product quality, process stability, and equipment protection.

The load cell seamlessly integrates with ABB’s tension control systems and can also interface with third-party industrial control platforms, making it a versatile and reliable choice for modern automation systems.

Key Features

• Precision force measurement for web tension and industrial loads

• Designed for continuous operation in harsh, high-demand environments

• Stainless steel housing for superior corrosion and impact resistance

• Compact, low-profile design for easy mechanical integration

• Highly stable analog output signal with excellent temperature compensation

• Integrated overload protection ensures operational safety

• Fully compatible with ABB force measurement systems and standard industry controllers

• Proven reliability in metals, paper, plastic, and converting industries

Technical Specifications

Product Applications

The ABB PFTL211-CE Load Cell is designed to meet the stringent demands of industries that rely on precise and continuous force measurement, including:

• Web Tension Control: Essential for paper, plastic films, textiles, metals, and flexible packaging processes

• Rolling Mills and Metal Processing: Tension monitoring during rolling, forming, and coiling operations

• Converting Lines: Accurate tension control for slitting, rewinding, and laminating processes

• Textile and Nonwoven Production: Maintains fabric tension for quality assurance and process stability

• Plastic and Extrusion Industries: Tension feedback during film production, extrusion, and coating

• Packaging Lines: Ensures consistent web tension during high-speed packaging operations

• Industrial Automation Systems: General force measurement in machinery, robotics, and testing equipment

The PFTL211-CE provides stable, accurate force feedback under dynamic operating conditions, enhancing production efficiency, reducing downtime, and improving product consistency.

Product Advantages

• High Measurement Precision: Ensures reliable and repeatable tension or compression force monitoring

• Durable Construction: Stainless steel housing provides resistance to corrosion, impact, and mechanical stress

• Compact, Low-Profile Design: Facilitates installation in space-constrained production lines

• Integrated Overload Protection: Protects the sensor from accidental overloading, enhancing system safety

• Superior Signal Stability: Excellent immunity to electrical noise and temperature fluctuations

• Versatile System Integration: Works seamlessly with ABB tension control systems and third-party controllers

• Proven Performance in Harsh Environments: Ideal for continuous, high-speed industrial processes

Frequently Asked Questions (FAQ)

1. What is the primary use of the PFTL211-CE Load Cell?

It is designed for precise force measurement, mainly for web tension control in continuous industrial processes.

2. Can the load cell handle both tension and compression forces?

Yes, it is suitable for both tension and compression measurement applications.

3. What rated capacities are available?

The PFTL211-CE series is available in capacities of 0.5 kN, 1 kN, 2 kN, 5 kN, and 10 kN.

4. Is this load cell resistant to harsh environmental conditions?

Yes, with stainless steel construction and IP65 protection, it withstands challenging industrial environments.

5. Can the load cell integrate with non-ABB systems?

Yes, it features a standard mV/V analog output compatible with most industrial controllers and monitoring systems.

6. Does the load cell include overload protection?

Yes, integrated mechanical overload protection up to 150% of the rated capacity ensures durability.

7. How accurate is the PFTL211-CE?

It offers high-precision measurement with typical accuracy of ≤ 0.05% of full scale.

8. Can this load cell operate continuously?

Yes, it is designed for continuous operation in demanding industrial environments.

9. How stable is the signal under temperature variations?

The load cell provides excellent temperature compensation, ensuring stable output even with environmental changes.

10. What industries commonly use this load cell?

Industries such as metals, paper, plastics, textiles, converting, and packaging rely on this product for accurate tension control.
